10‑Ton Mechanical Tipping Platform｜Shandong University Rock Crushing Experiment

Q: <strong>Will the rock tip or wobble during flipping due to irregular shape and off‑centre gravity?</strong><div><span style="font-weight: 600;">

답변: No. The dual platforms are rigidly connected via a common shaft and 20A‑2 double chains – both sides move in perfect sync. The J200×100×8 heavy‑duty frame resists bending even with extreme eccentric loads. The motor brake locks at any angle – no hydraulic creep.

Q: <strong>Why use a mechanical chain drive instead of hydraulic cylinders?</strong><div><span style="font-weight: 600;">

답변: Rocks are rough and create impact shocks – hydraulics leak and wear quickly under such loads. Dual‑cylinder synchronisation is also difficult with eccentric loads. Chains are rigid, impact‑resistant, and maintenance‑free (just regular lubrication). They guarantee perfect synchronisation without the complexity of hydraulics.

Q: <strong>The platform is 1500×1500mm – how do you fit rocks larger than that?</strong><p data-start="9499" data-end="9620"></p>

답변: Removable 200mm wing plates are bolted to each side – expanding the deck to 1700×1700mm. The plates are FEA‑verified for 10‑ton loads. They can be unbolted easily when not needed, restoring the standard size for forklift access.

Q: <strong>4. How do you get a 10‑ton rock onto the platform with a forklift?</strong><div><span style="font-weight: 600;">

답변: Two removable rectangular tubes are fixed under the platform as guide slots. The forklift forks slide along the tubes to place the rock securely, then back out. The tubes are bolted to the frame and can be removed after loading, leaving a flat deck. One forklift, one operator – no crane needed.

POSTED: 6/24/2026

개요

프로젝트 유형: Heavy‑duty mechanical tipping platform (dual platforms, 90° tilt)
의뢰인: Shandong University (Geotechnical & Structural Engineering Research Centre)
산업: Higher education research (rock mechanics, deep rock engineering)
핵심 기능: 90° tipping of 10‑ton natural rock blocks for multi‑angle breaking, sampling, CT scanning, and compressive strength testing
주요 매개변수: 10‑ton capacity, dual independent platforms (1500×1500mm each), removable wing plates (expand to 1700×1700mm), mechanical chain drive (20A‑2), 4kW motor, wireless remote control

고객사 개요 및 조사 요구사항

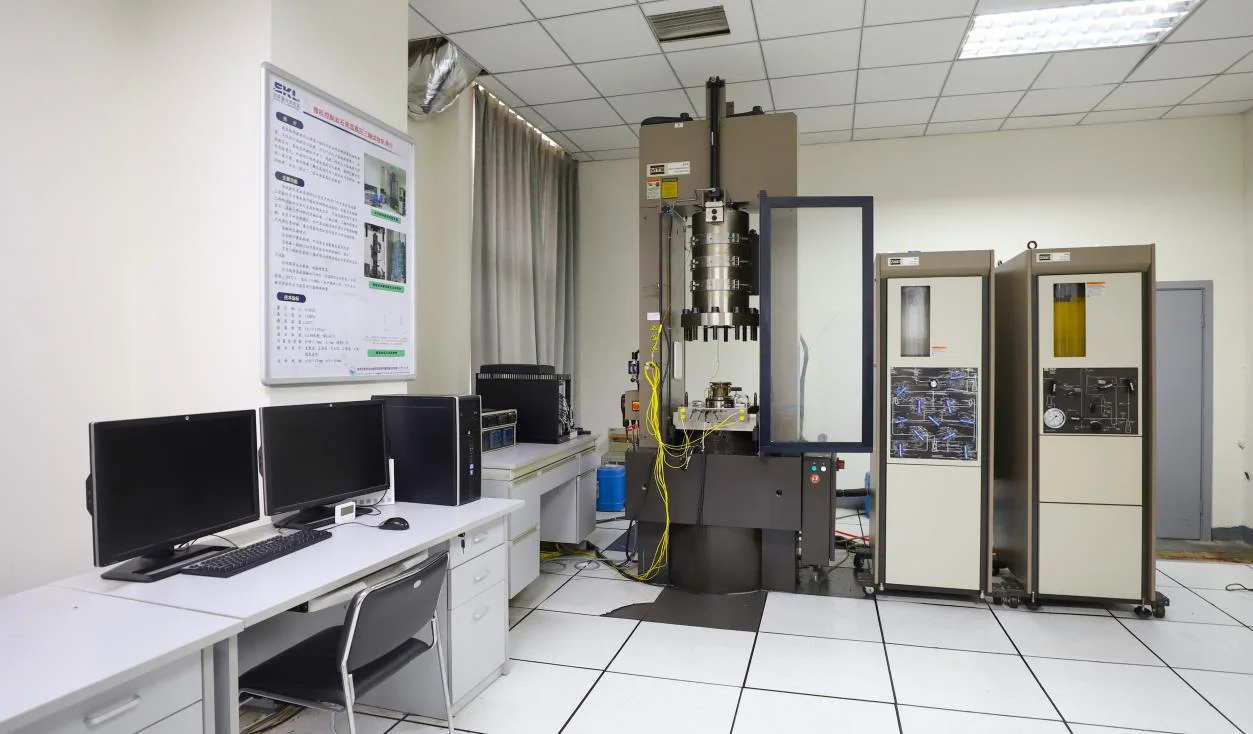

Shandong University’s Geotechnical & Structural Engineering Research Centre conducts rock mechanics studies on deep tunnels and underground caverns. For 암석 파쇄 실험, researchers need to flip 10‑ton irregular natural rock blocks 90° to access multiple faces for breaking, sampling, CT scanning, and strength testing.

Traditional methods (cranes or manual levers) are unsafe, imprecise, 및 damage samples – risking injury, compromising test repeatability, and destroying rock structure.

고객은 다음을 요청했습니다. smooth, precise, and repeatable flipping device, with forklift loading/unloading and a platform adaptable to varying rock sizes (up to 1700mm after expansion).

기본 매개변수

매개변수	가치
정격 부하	10,000kg
기울기 각도	90°
Number of platforms	2 independent platforms
Basic platform size (each)	1,500 × 1,500 mm
Platform size with wing plates	1,700 × 1,700 mm
플랫폼 프레임	J200×100×8 rectangular tube
Platform deck thickness	8 mm
Drive motor power	4 kW
Drive chain	20A‑2 double strand
Tilt mechanism	Mechanical chain drive
제어	Wireless remote
Auxiliary features	Removable fork guide tubes, removable wing plates
색상	노란색
주문 날짜	December 22, 2025
배송 날짜	January 10, 2026 (20 days)

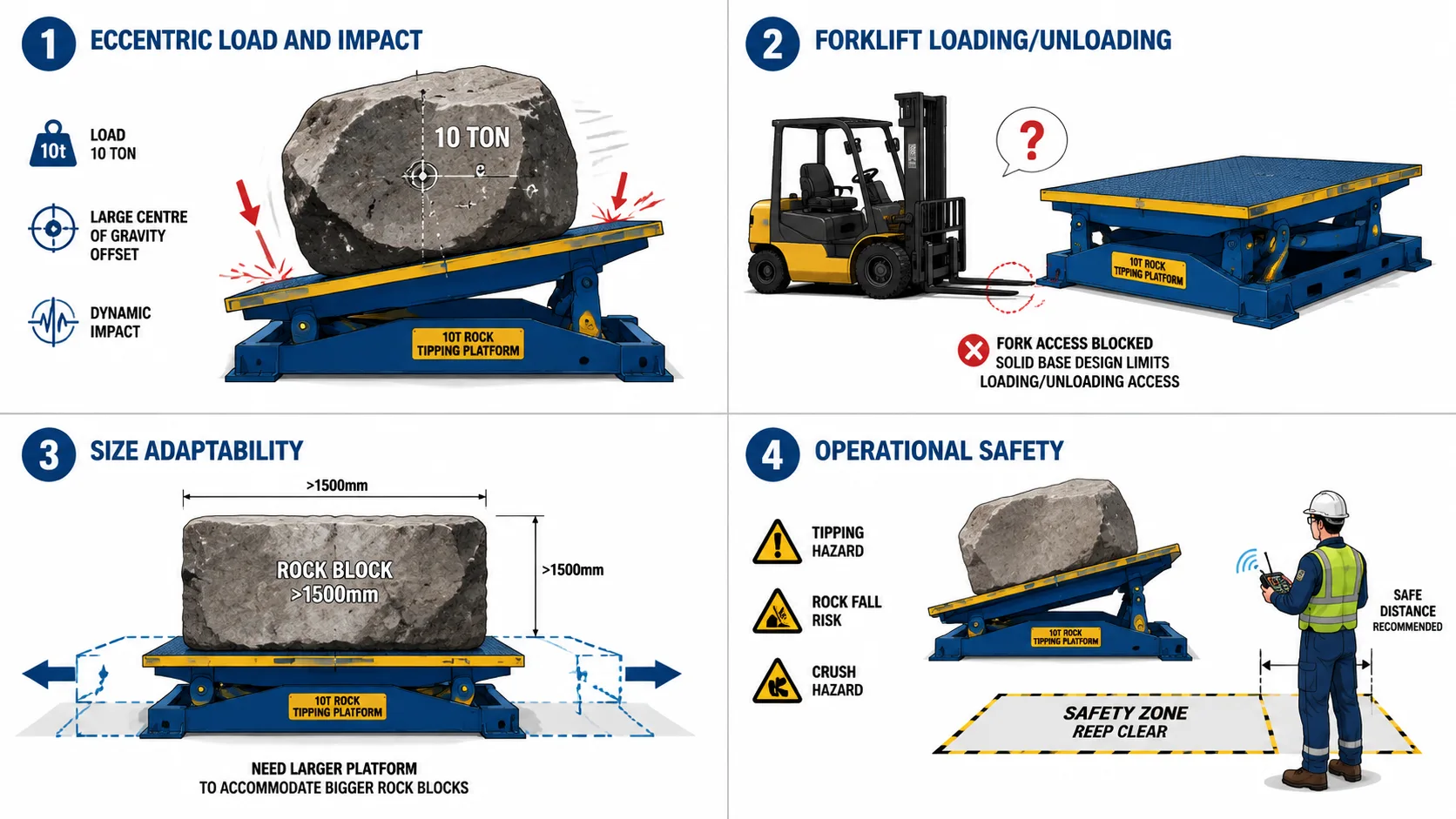

도전

Extreme eccentric load and impact: Irregular natural rock blocks have large centre‑of‑gravity offsets. The impact forces generated during tilting under 10‑ton eccentric loading far exceed regular uniform loads – demanding exceptional structural rigidity.
Forklift loading/unloading: The forklift forks must slide under the platform to place the rock. A solid platform base would block access.
Size adaptability: Rocks may exceed 1500mm – the platform must be expandable without replacing the equipment.
Operational safety: Operators must stay at a safe distance during flipping to avoid injury from sudden cracking or overturning.
Urgent delivery: Ordered on December 22, required shipment by January 10 – just 20 days.

솔루션

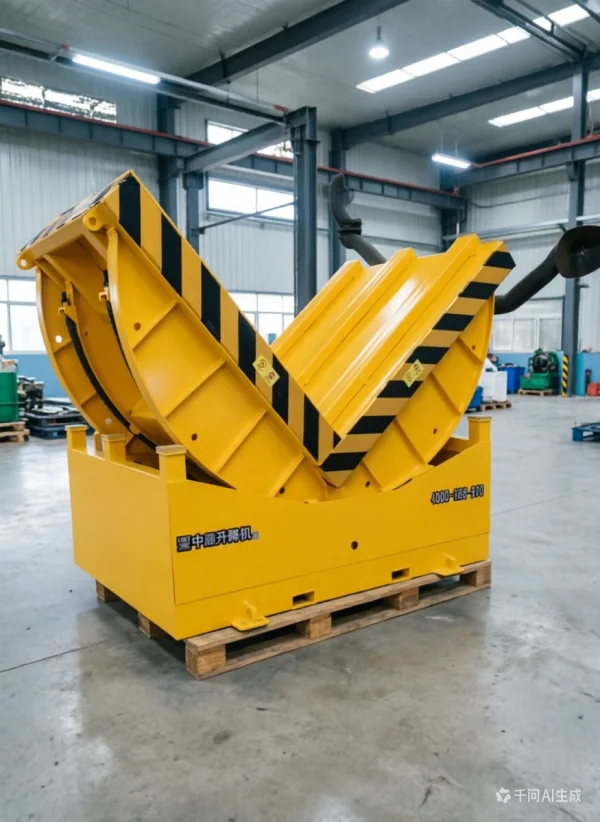

Dual‑platform mechanical flip structure – handling eccentric load and impact

Design approach: Conventional hydraulic tippers work well for regular workpieces, but rock blocks have large centre‑of‑gravity offsets and rough surfaces. Hydraulic systems are prone to leakage and pressure loss under eccentric impact. This equipment uses 두 개의 독립적인 플랫폼 + 기계식 체인 구동 방식:

Two 1500×1500mm platforms support the rock at both ends. A 4kW motor drives 20A‑2 double‑strand chains to rotate both platforms synchronously 90° around a central shaft – flipping the entire rock smoothly.

Drive: 4kW motor + 20A‑2 double‑strand chain (high safety factor, impact‑resistant)
Frame: J200×100×8 rectangular tube – rigid enough for 10‑ton eccentric loads
Platform deck: 8mm thick steel plate – wear‑resistant

Removable wing plates – flexible size expansion

Requirement: Rock dimensions may exceed 1500mm, requiring temporary platform enlargement.

Solution: Two 폭 200mm 탈부착식 윙 플레이트 (screw‑fixed) are added on the long and short sides of each platform. With wing plates installed, the platform size becomes 1700×1700mm. The wing plates are removed when not needed – no interference with forklift access.

Forklift guide tubes – solving the loading/unloading problem

Challenge: Forklift forks must slide under the platform to place the rock. A solid platform base blocks access.

Solution: Two 분리 가능한 직사각형 튜브 각 플랫폼에 추가된 이 튜브들은 데크 아래에 고정되어 지게차 포크의 가이드 슬롯 역할을 합니다. 지게차는 포크를 튜브를 따라 미끄러뜨려 암석을 올려놓은 뒤 후진하여 빠져나옵니다. 튜브는 나사로 고정되어 있어 실험이 끝난 후 제거할 수 있으며, 이 경우 플랫폼 표면은 평평한 상태로 유지됩니다.

Wireless remote control – ensuring operator safety

Safety requirement: Operators must stay at a safe distance during 10‑ton rock flipping.

Solution: A 무선 리모컨 allows the operator to start, stop, and reset the tilt from a distance. The motor has a self‑locking brake to hold the angle when power is off.

긴급 배송

Challenge: Ordered December 22, required shipment by January 10 – only 20 days.

Solution: Priority production scheduling; key components (motor, chains, bearings) pre‑stocked. Shipment made on January 10 as required.

제품 인증서

자주 묻는 질문

답변: No. The dual platforms are rigidly connected via a common shaft and 20A‑2 double chains – both sides move in perfect sync.

The J200×100×8 heavy‑duty frame resists bending even with extreme eccentric loads. The motor brake locks at any angle – no hydraulic creep.

답변: Rocks are rough and create impact shocks – hydraulics leak and wear quickly under such loads.

Dual‑cylinder synchronisation is also difficult with eccentric loads. Chains are rigid, impact‑resistant, and maintenance‑free (just regular lubrication).

They guarantee perfect synchronisation without the complexity of hydraulics.

답변: Removable 200mm wing plates are bolted to each side – expanding the deck to 1700×1700mm.

The plates are FEA‑verified for 10‑ton loads. They can be unbolted easily when not needed, restoring the standard size for forklift access.

답변: Two removable rectangular tubes are fixed under the platform as guide slots.

The forklift forks slide along the tubes to place the rock securely, then back out.

The tubes are bolted to the frame and can be removed after loading, leaving a flat deck.

One forklift, one operator – no crane needed.
