Continuous Vertical Conveyors

C type/Z type/E type, ≤16m, 300Kg, Automatic loading, Small footprint, Fast transmission speed

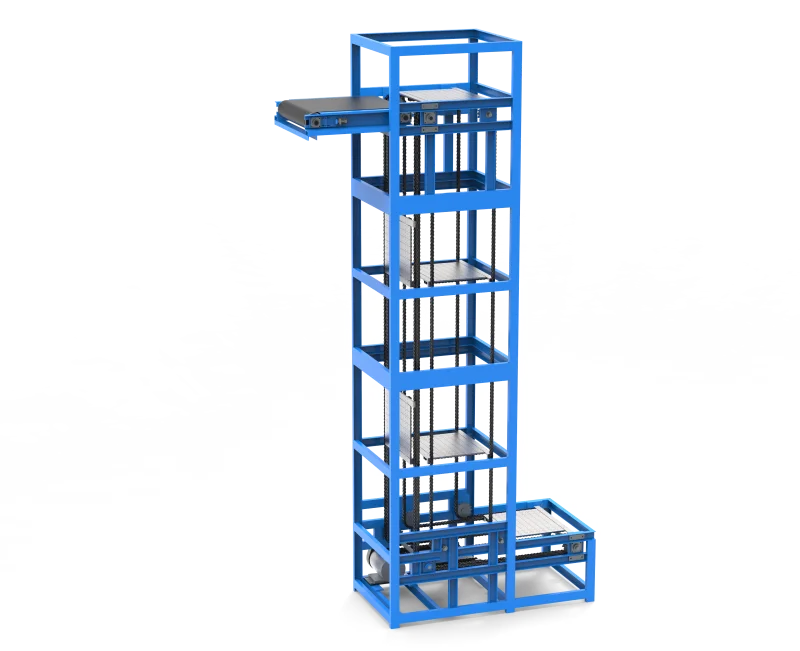

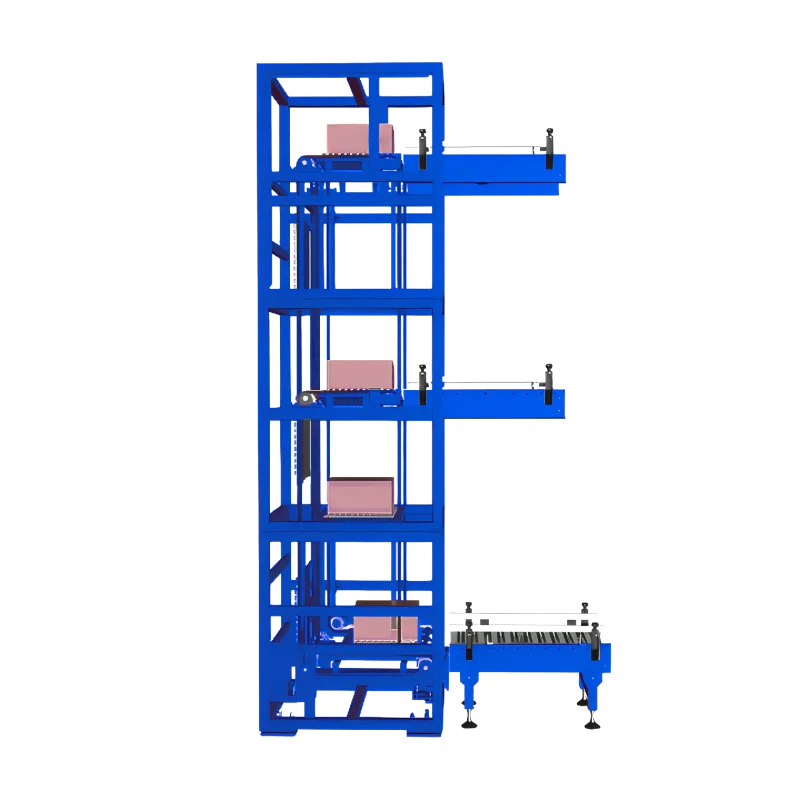

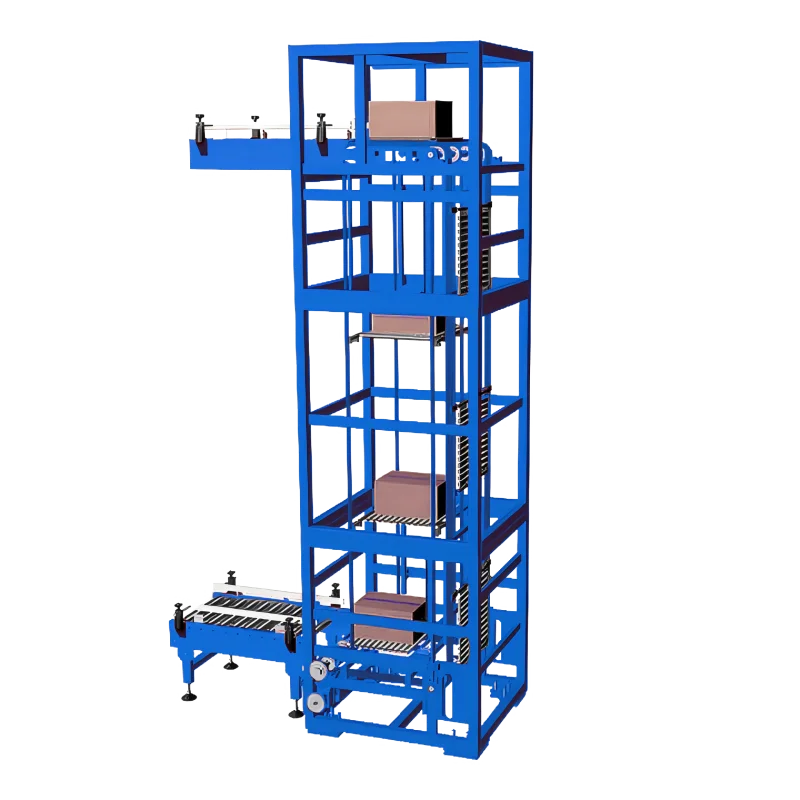

Continuous Vertical Conveyors (CVCs) are used in automatic loading conveyor lines. Common types include “Z”, “C” and “E”. They have a small footprint, fast transmission speed and high handling efficiency. They can achieve efficient transportation of boxes, pallets, packages, sacks, bags, luggage, pallets, barrels, kegs and other goods between different floors.

Capacity: ≤ 1 ton

Distance: ≤ 15 m

Width: Customized

Length: Customized

Models and Specs
Case Studies and Videos
Product Documents

Continuous Vertical Conveyors

Models & Specs

Description	Details

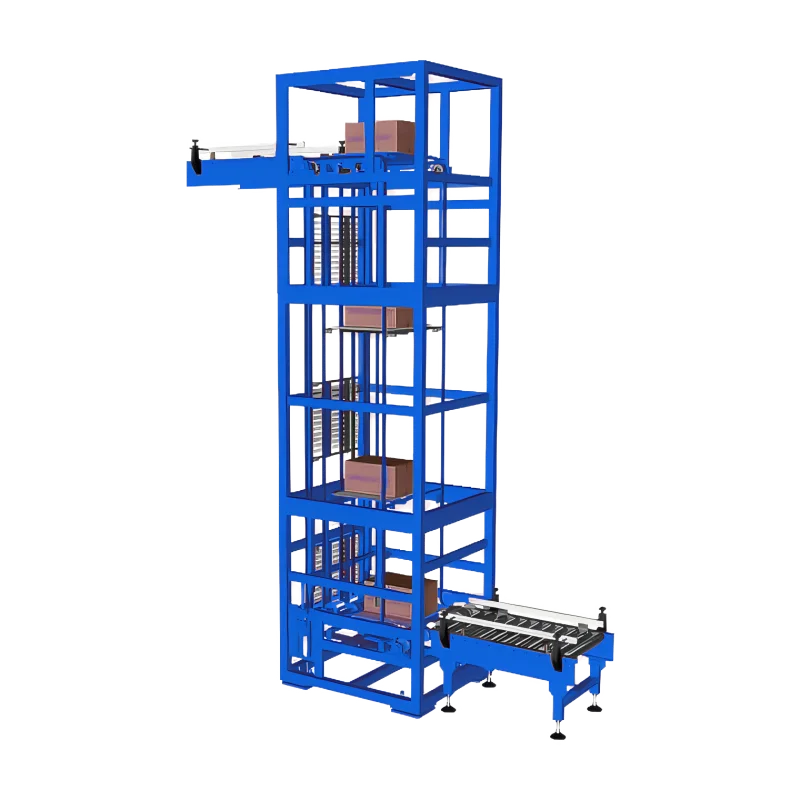

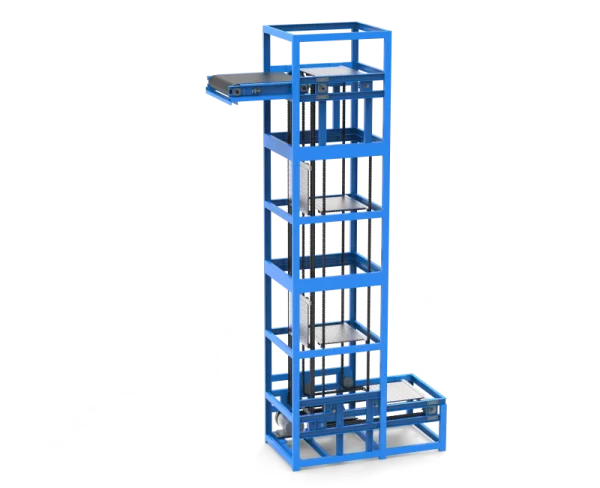

Structure Type	C type/Z type/E type
Cargo Load Range	≤300Kg
Conveying capacity	1500 boxes/hour
Lifting speed	≤40m/min
Maximum lifting height	16m
Installation Dimensions	Customization
Conveyor line type	Belt conveyor line, plate chain conveyor line, roller conveyor line, chain conveyor line
Frame material	Aluminum alloy profiles, stainless steel square tube, carbon steel square tube
Installation conditions	Hoistway/floor opening/bolt fixing
Power supply	110V/220V/230V/380V/440V
Type of cargo	Cartons/Plastic Crates/Pallets/Barrels/Processed Parts/Bulk Parts
Applicable Industries	Garment factory/Logistics transportation/Automated workshop/Food and beverage factory/Chemical plant/Machinery factory

All parameters can be increased/customized

Video

Details

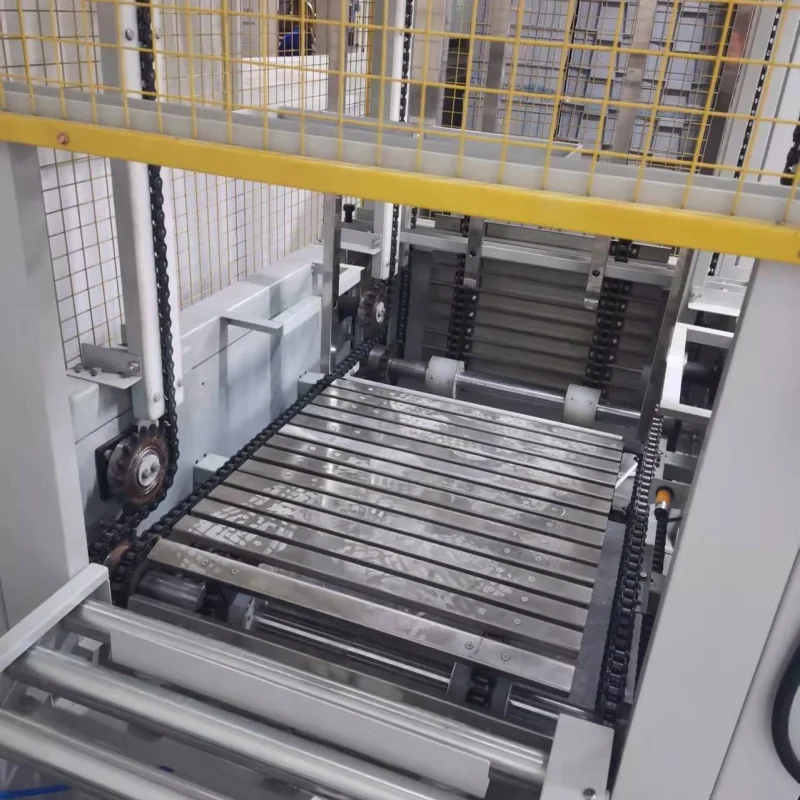

Cargo plate chain

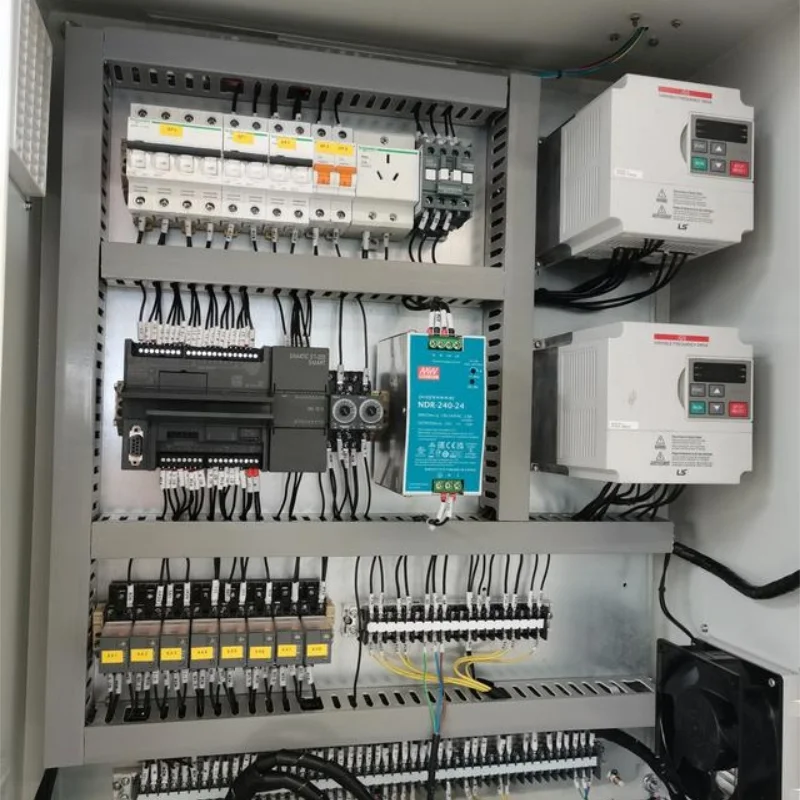

Control cabinet

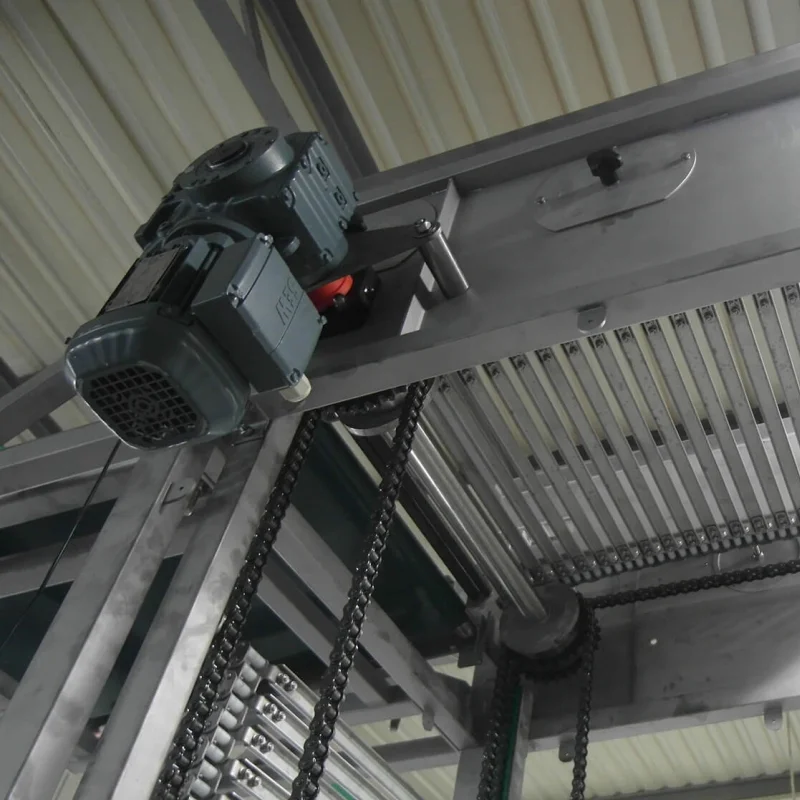

Drive motor

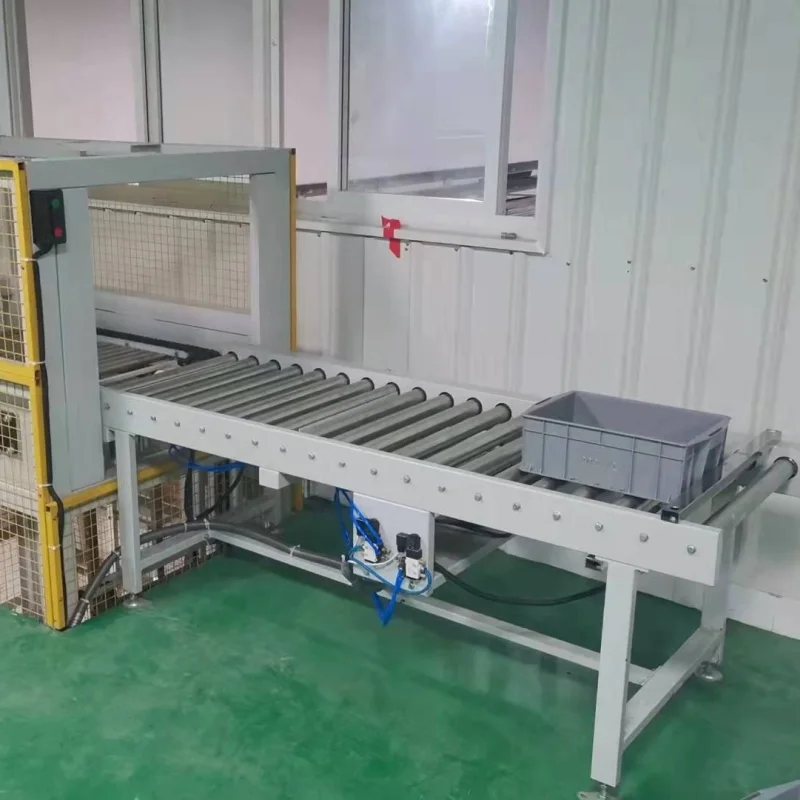

Roller conveyor belt

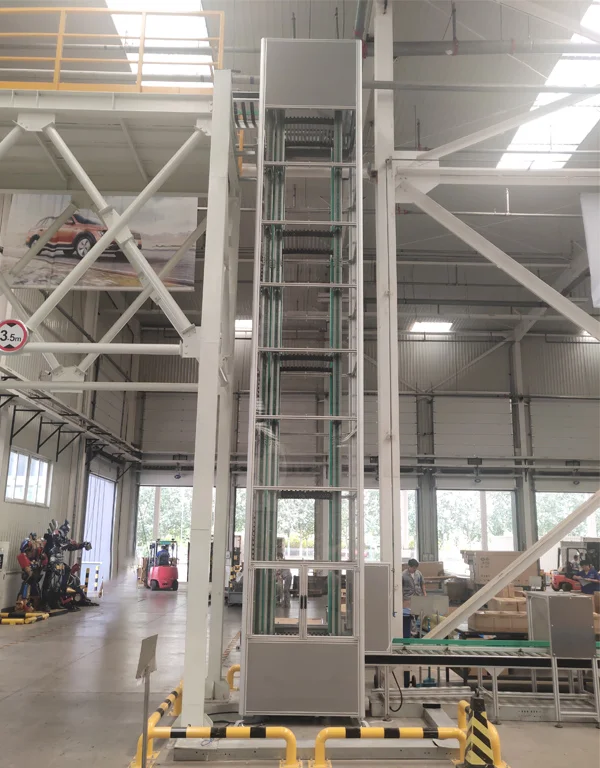

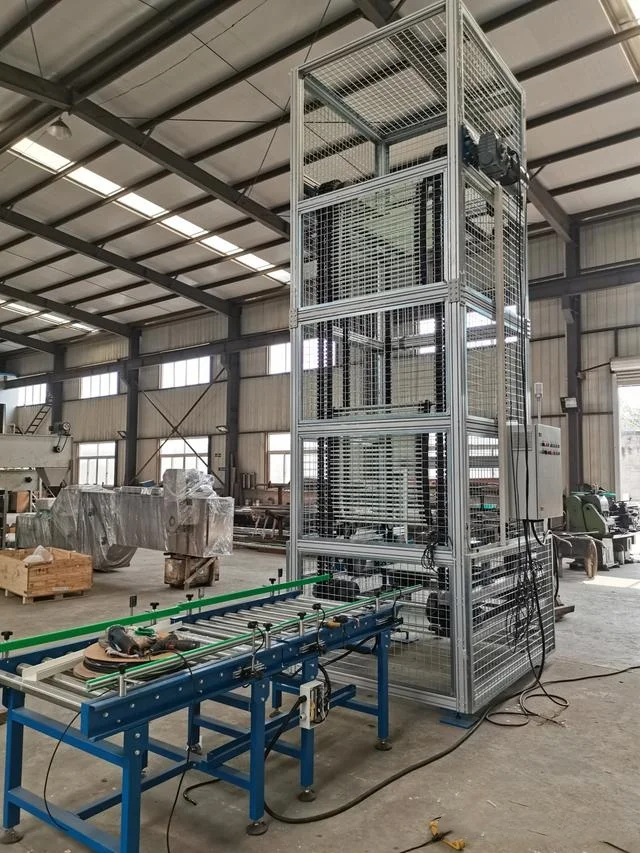

Project Cases

Installation Services

1. On-site installation can be arranged in most parts of the world.
2. Remote installation guidance is available.
3. Installation videos and step-by-step instructions are provided.
4. Reliable installation team and professional installers.
