Zhongwei Indonesia North Morowali Industrial Base: Enhancing Low-Grade Nickel Production and Processing Efficiency with a Hydraulic Lift Bridge

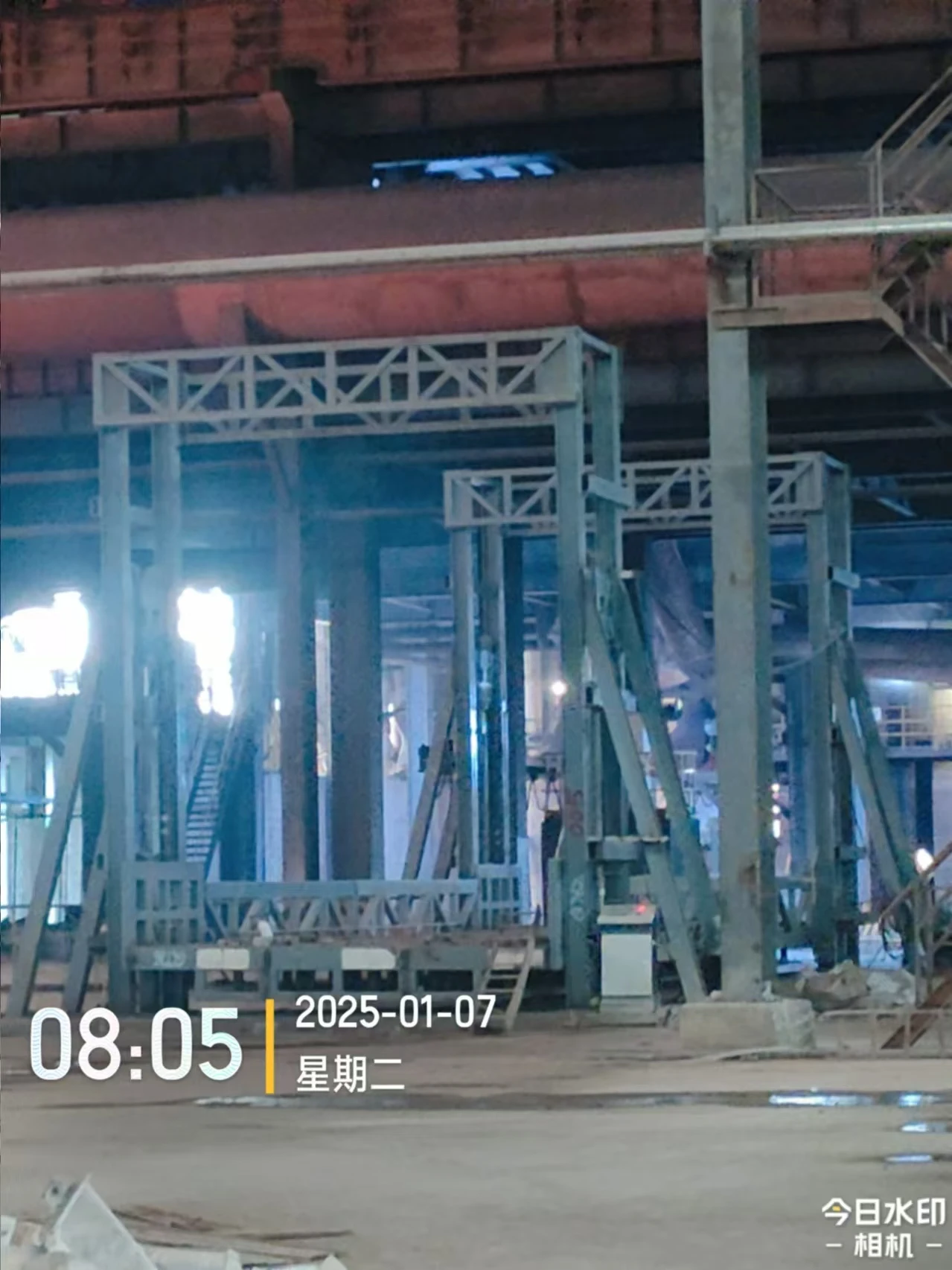

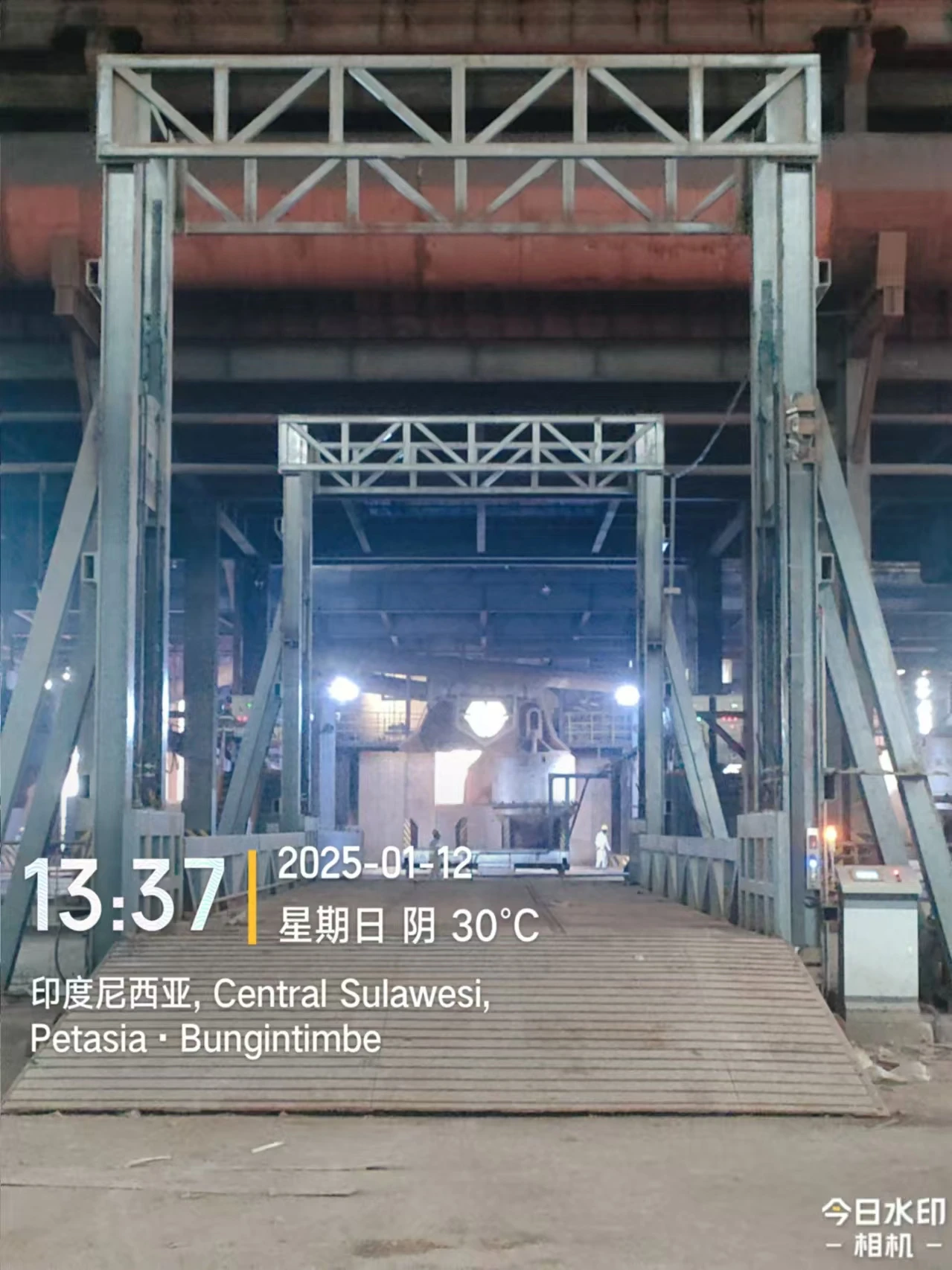

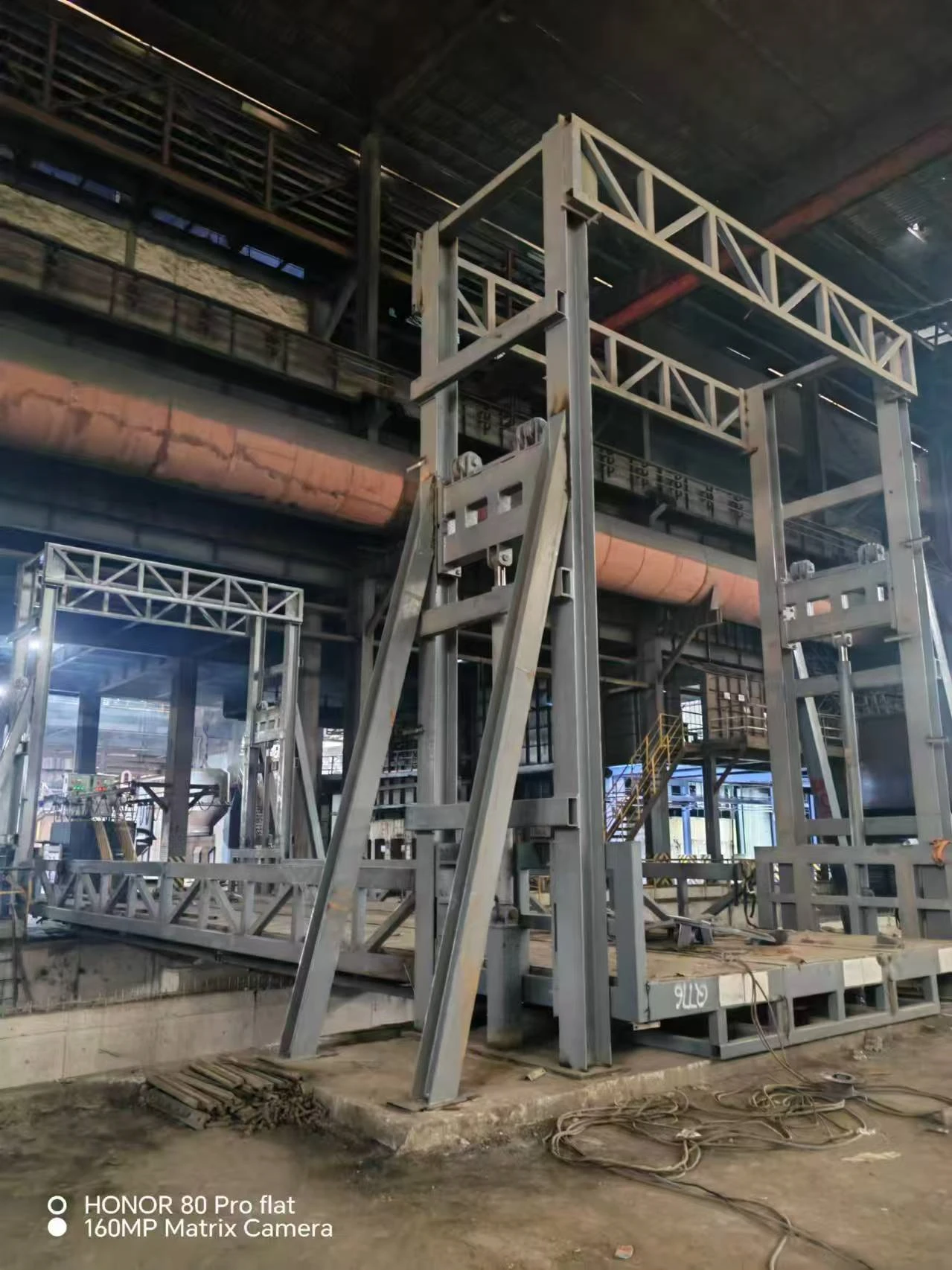

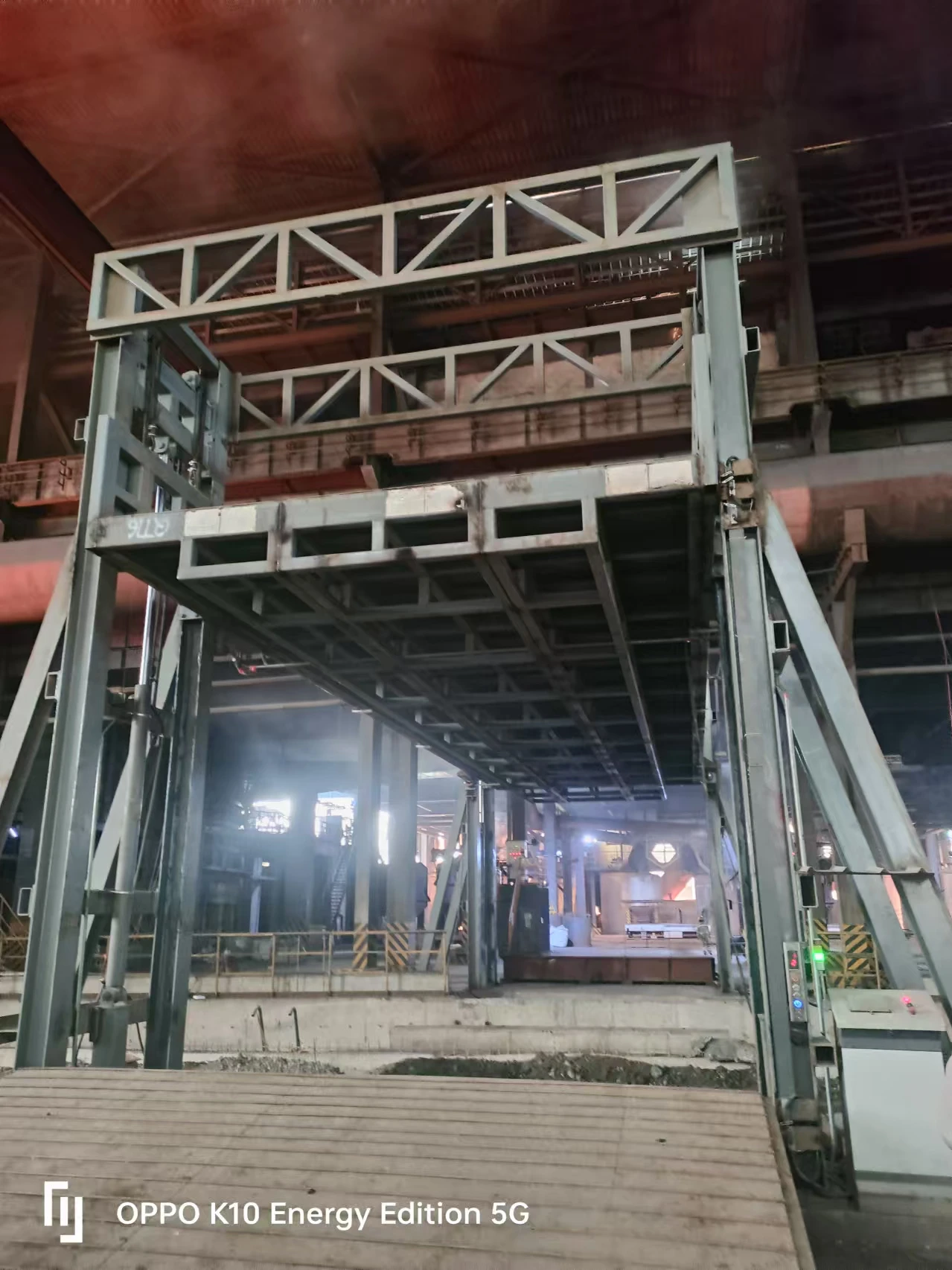

The hydraulic lift bridge for vehicles, located at the Zhongwei Indonesia North Morowali Industrial Base, is specifically designed for mineral transportation, enhancing safety and convenience. This lift bridge system consists of four hydraulic lifting devices, with three units having a platform size of 4.8m x 10m and one unit measuring 4.8m x 16m, each capable of supporting a load of up to 36 tons and achieving a maximum lift height of 4.2 meters.

Key features of this lift bridge include:

1. High Load Capacity: Each lift bridge can safely support 36 tons, making it suitable for heavy trucks and mineral transport.
2. Flexible Lifting and Lowering: With both manual and remote control options, it is easy to operate and can quickly respond to transportation needs.
3. Intelligent Control: Equipped with encoders, proportional valves, and PLC systems, it ensures precise height control and synchronized lifting, minimizing operational errors.
4. Safety Design: The lift bridge remains in an elevated position to avoid collisions with the transport vehicles below, ensuring transportation safety.

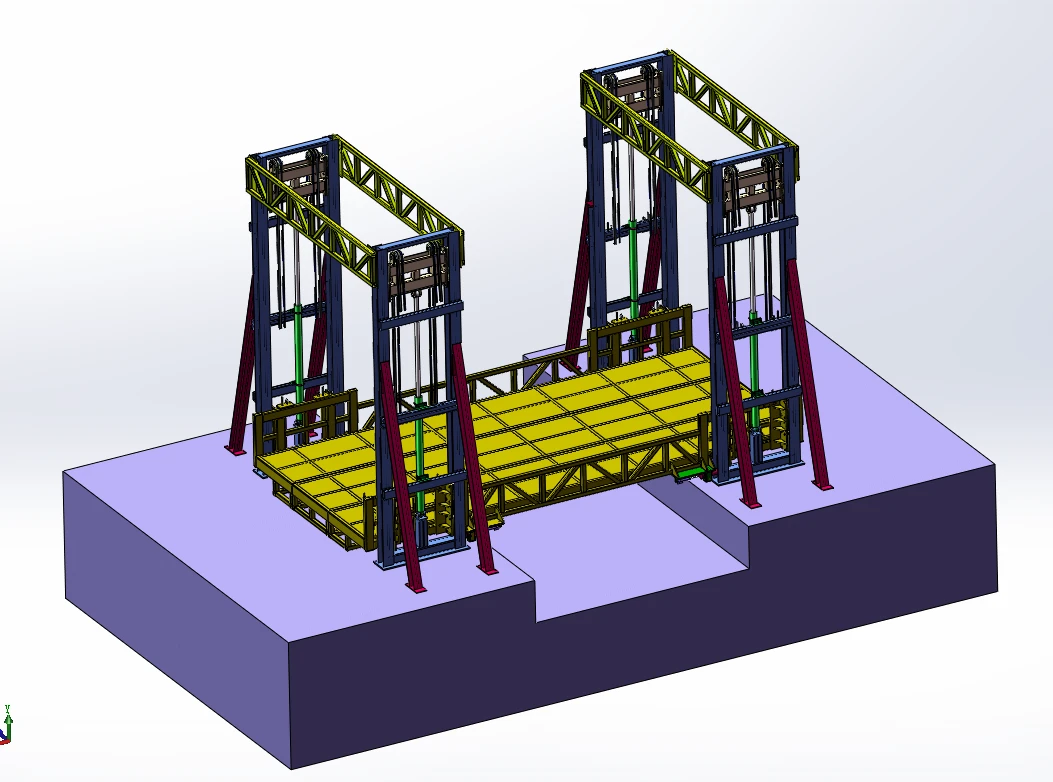

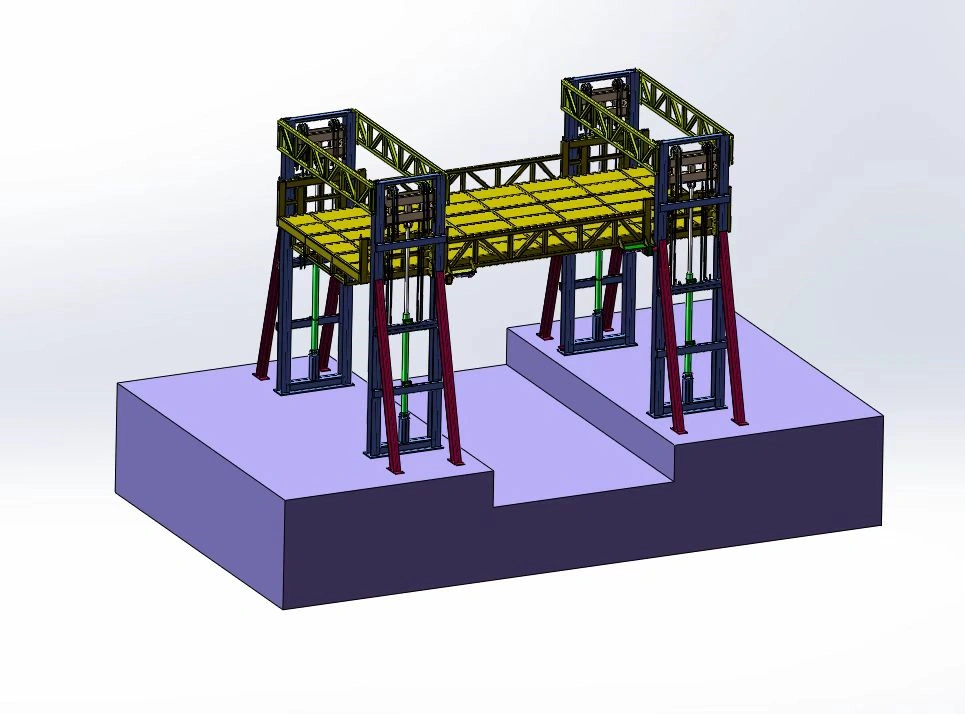

5. Durable Structure: Built with a 4-cylinder, 8-column design, it is robust and well-suited for harsh working environments.
6. Efficient Space Configuration: Each unit’s foundation measures 5600mm x 1500mm x 10mm, allowing efficient operation in confined spaces.

This lift bridge system not only improves the efficiency of mineral transportation but also significantly reduces operational risks through intelligent and safe design, providing reliable support for mining operations.
