Custom Vehicle-Mounted Scissor Lift Platform for Mining Industry

POSTED: 4/21/2026

Client Pain Points

Personnel safety hazards: Maintenance and inspection work at height on large mining vehicles exposes workers to fall risks without proper safe access
Power constraints: Underground mining operations require low-voltage (24V) equipment running on vehicle power systems
Dual-purpose requirements: Vehicle-mounted platforms must simultaneously support safe personnel access and efficient cargo handling
Extreme temperature ranges: Equipment must operate reliably in temperatures ranging from -20°C to +60°C

Technical Specifications

Parameter	Specification
Platform Size	3,200 × 1,800 mm
Rated Capacity	≥6,000 kg
Lifting Stroke	>2,000 mm (incl. collapsed height)
Structure	Single-layer scissor mechanism
Guardrail Height	1,100 mm
Support Arms	220×40mm steel plate × 4
Platform Frame	16# channel steel
Platform Deck	8mm anti-slip plate
Base Frame	16# channel steel
Hydraulic Cylinders	Φ160 × 2
Pivot Shafts	Φ120 × 2
Hydraulic Hoses	Φ33 × 2
Hydraulic Pressure	16 MPa
Recommended Flow	60 L/min
System Voltage	24V DC
Lifting Speed	≥3 m/min
Canopy Size	855 × 835 mm
Canopy Stroke	530 mm
Canopy Weight	100 kg
Control	Ground manual + platform electric valve
Limit Switches	Mechanical + electric
Color	Yellow

Solution

1. Vehicle-Mounted Integration — Rigid Chassis Connection

Unlike conventional fixed or mobile lifts, this platform mounts directly to the mining vehicle chassis, traveling to operational sites with the vehicle. The base frame connects to the vehicle frame using dedicated mounting dimensions, ensuring structural stability during vehicle movement and operation.

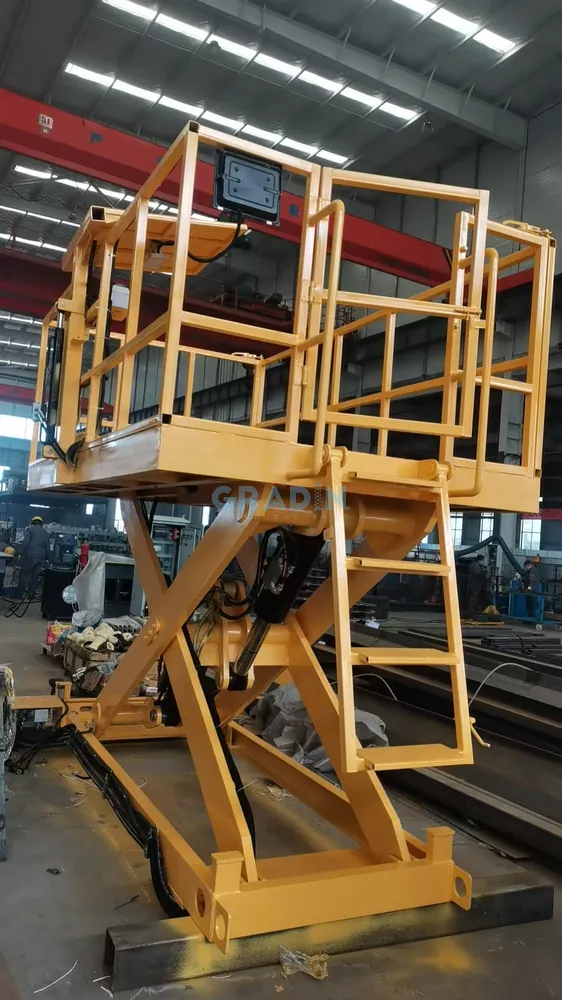

2. Full-Spectrum Personnel Access Design

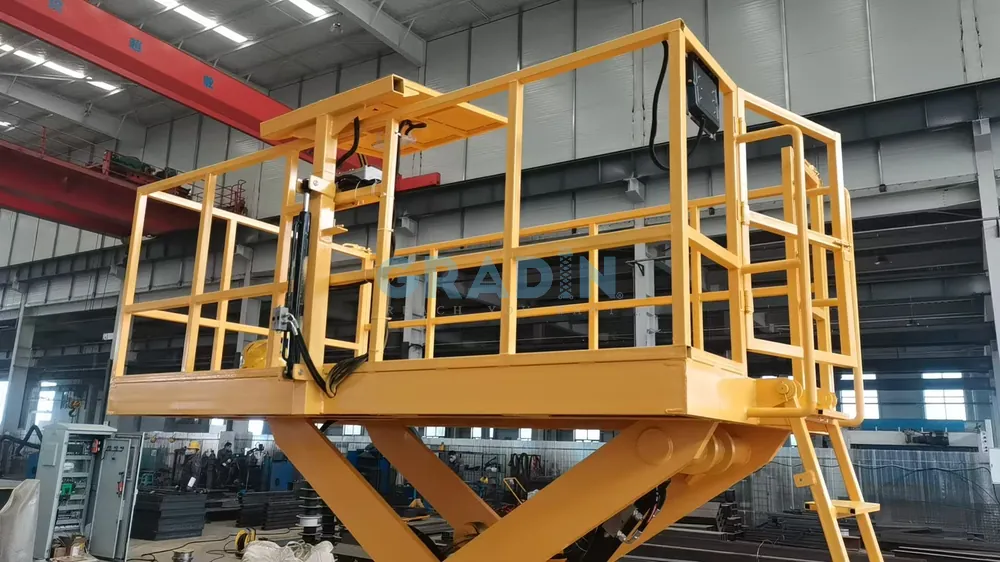

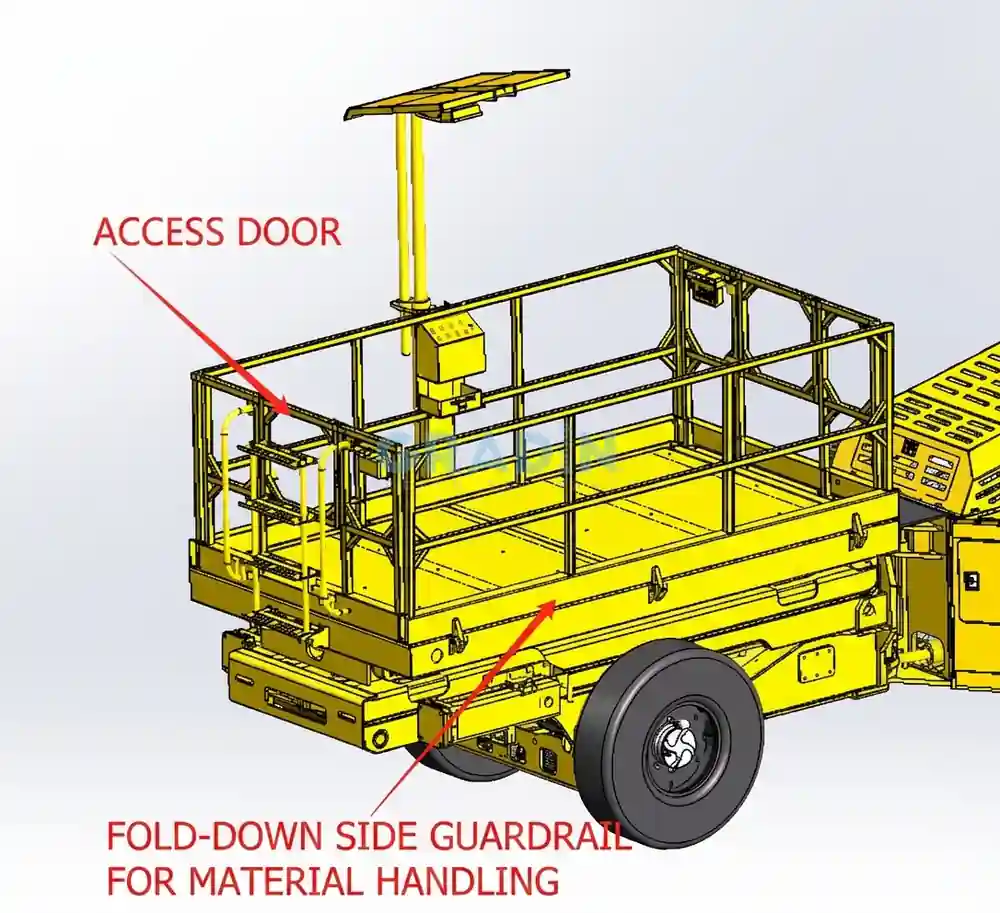

Side door + foldable ladder: The 1,800mm side features an access door with a foldable ladder for safe personnel boarding

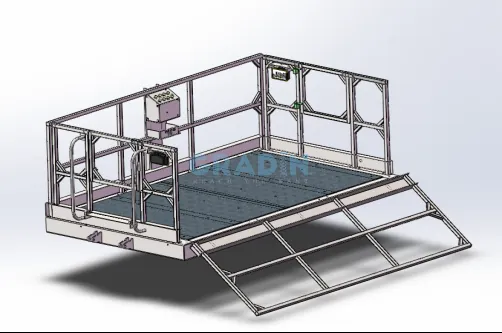

Removable guardrail: The 3,200mm side guardrail opens for rapid cargo loading and unloading
1,100mm guardrail height: Meets height work safety protection standards

3. Retractable Overhead Canopy — Underground Mining Protection

Designed for underground rock fall hazards, the platform features a hydraulically retractable overhead canopy (855×835mm, 530mm stroke, 100kg). The canopy includes 24V work lights for visibility in low-light underground environments.

4. 24V Low-Voltage Safety System

The 24V DC system runs on the vehicle’s battery supply — no external power required. All lighting, canopy drive, and control systems operate at safe low voltage, meeting underground mining safety requirements.

5. Heavy-Duty Stable Lifting Performance

Rated capacity ≥6,000kg with lifting speed ≥3m/min at 16MPa hydraulic pressure. Dual Φ160 large-bore cylinders with Φ120 pivot shafts ensure smooth, reliable heavy-load lifting.

6. Extreme Temperature Operating Range

Equipment operates reliably from -20°C to +60°C, suitable for cold-weather underground mining in winter and high-temperature operational environments.

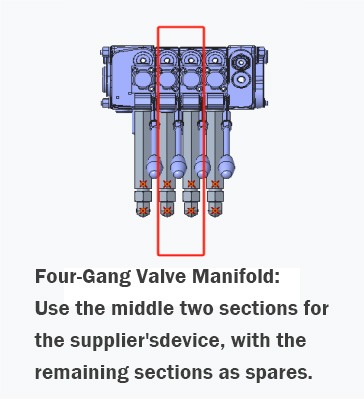

7. Four-Way Valve Redundancy

The hydraulic system features a four-way valve block (center two sections active, two sections as spare), enhancing control reliability and facilitating future maintenance upgrades.
