20-Ton Hydraulic Tilter | V-Groove Self-Centering | for Wind Tower & Pressure Pipe

POSTED: 4/28/2026

Overview

Project type: Heavy-duty hydraulic tilter
Client: Yichang Baimao Trading Co., Ltd.
End user: Sinohydro Engineering Bureau 14 (Guangdong) New Energy Equipment Manufacturing Co., Ltd.
Key challenges: 20-ton load, large workpiece diameter (2.5-7m), 90° tilt, within 10 minutes, V-groove positioning, custom L-shaped platform

Yichang Baimao Trading supplies equipment to Sinohydro 14, a state-owned enterprise producing wind tower sections and pressure pipes. During pipe manufacturing, welding and coating require 90° tilting – from horizontal to vertical/angled position. Manual crane tilting is inefficient and hazardous.

Core Specifications

Parameter	Value
Rated load	20,000 kg
Tilt angle	90°

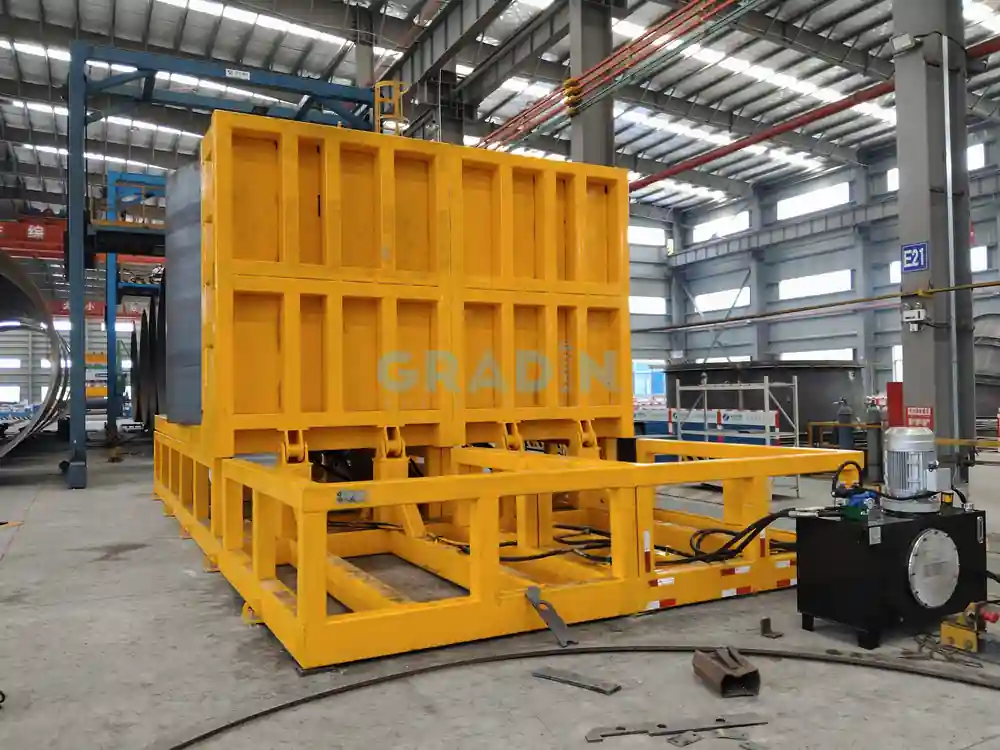

Platform size	3×4.8m + 4.8×7m (L‑shape)
Workpiece diameter	2500 – 7000 mm
Tilt time	≤10 min (adjustable)
Cylinder	φ150-105
Pump power	11 kW
Voltage/frequency	380V / 60Hz / 3P
Special feature	V‑groove along 3m side
Color	Yellow
Order date	Feb 10, 2026
Shipment date	Mar 26, 2026

Solution

2.1 Heavy‑duty hydraulics: 20 tons + large cylinder

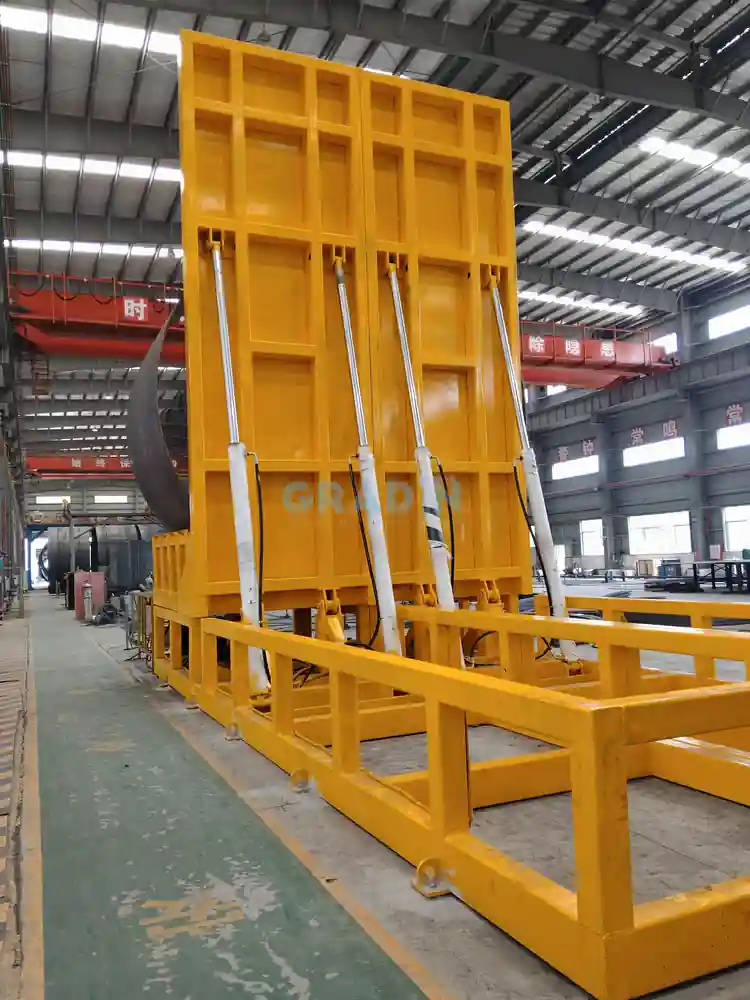

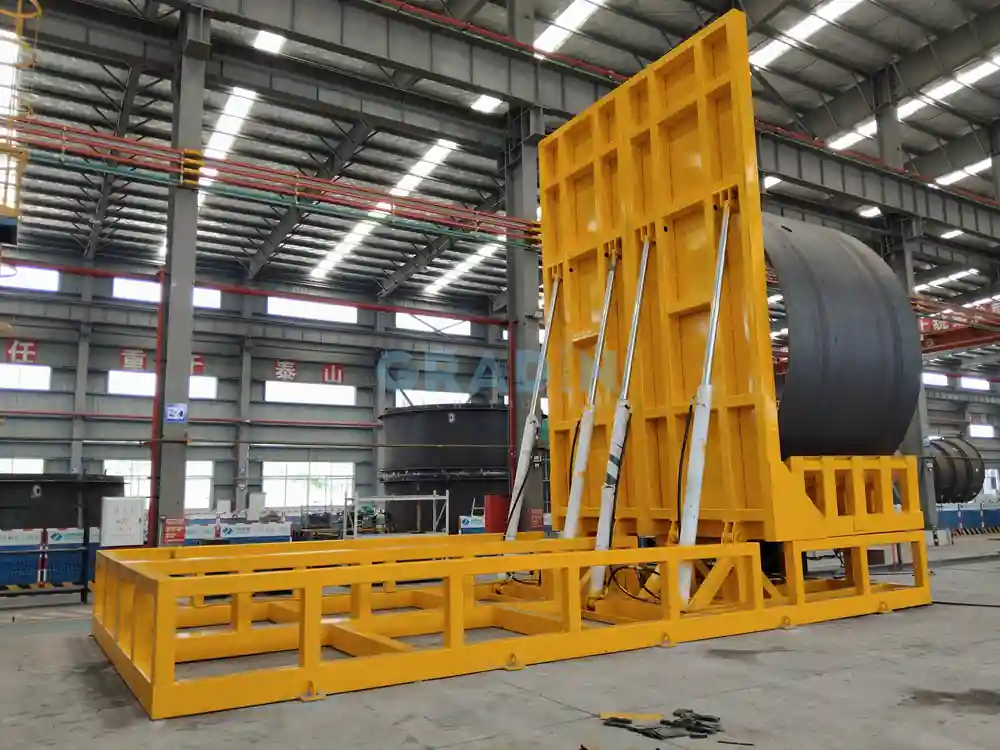

Approach: 20-ton capacity – far above typical 5-10t tilters. Selected φ150-105 cylinder, 11kW pump unit. Tilt time adjustable within 10 minutes – balance of safety and efficiency.

Advantage: Large cylinder provides ample thrust margin; hydraulic throttle control ensures smooth speed.

2.2 Large workpiece adaptability: V‑groove + custom L‑shape platform

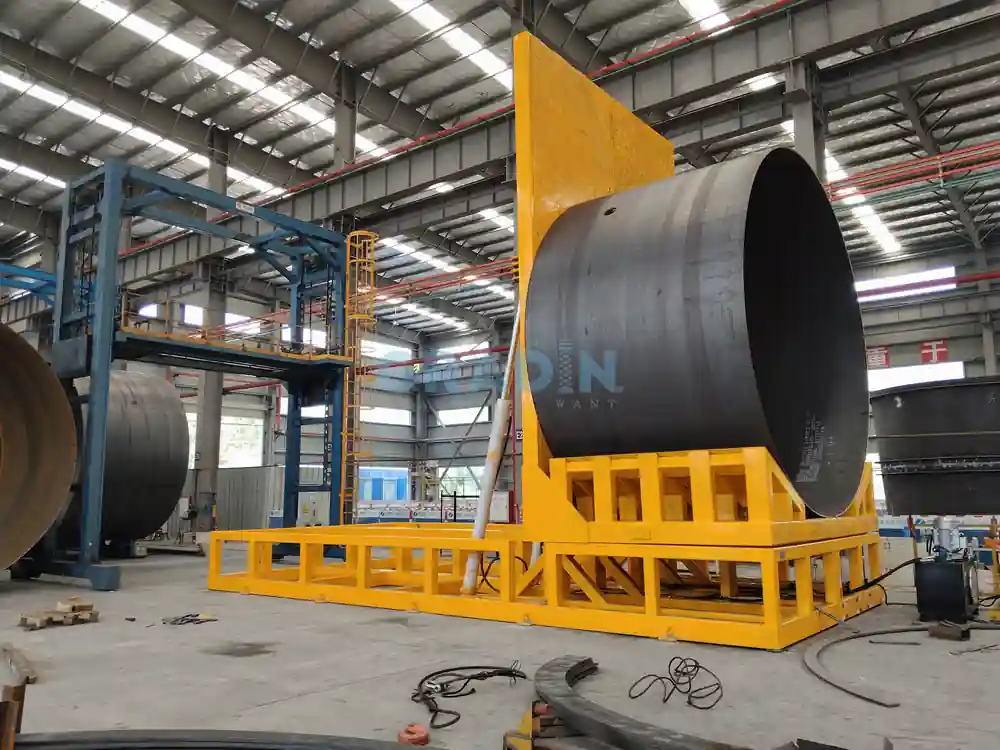

Approach: Pipe diameter spans 2.5-7m. Added V‑groove along the 3m direction of the platform – automatically centers pipes of different diameters, preventing rolling during tilt.

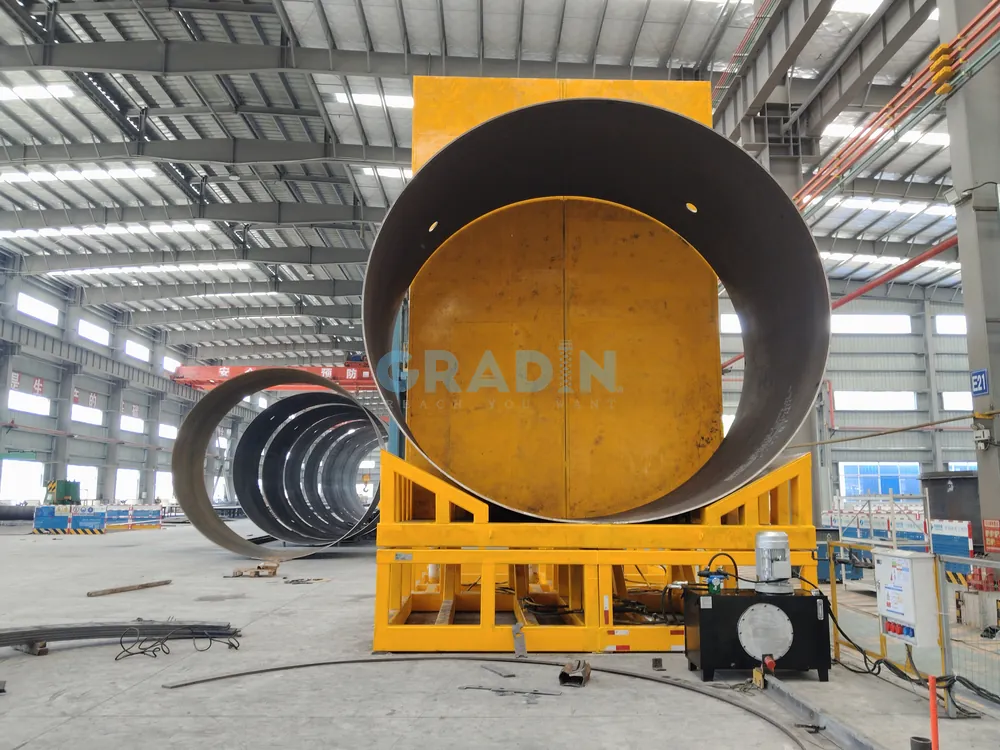

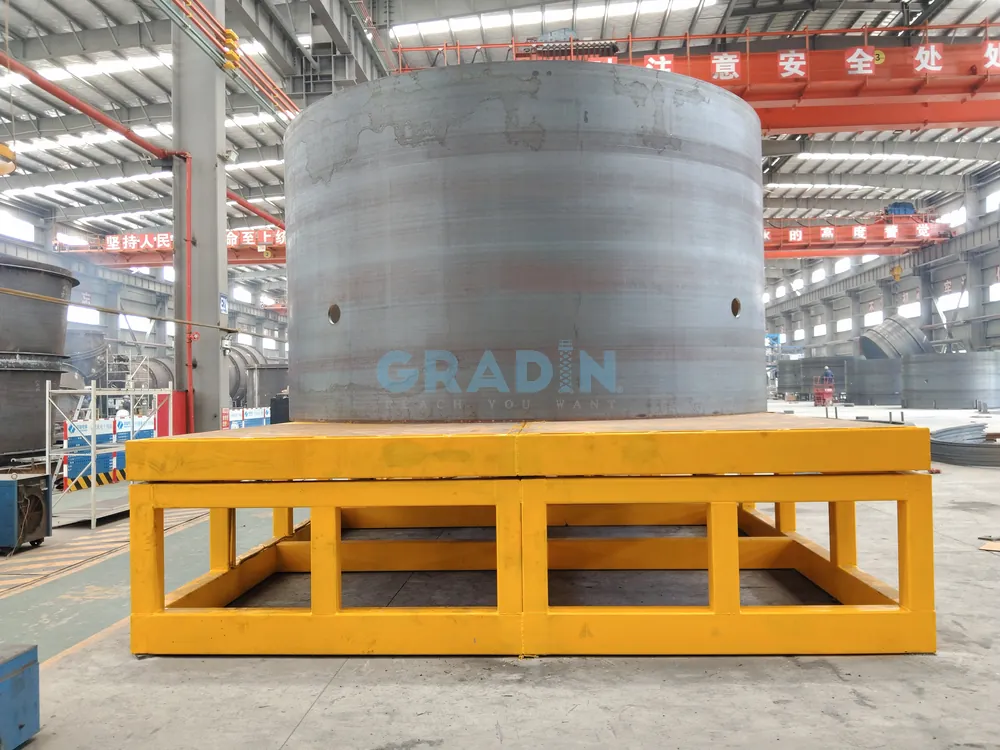

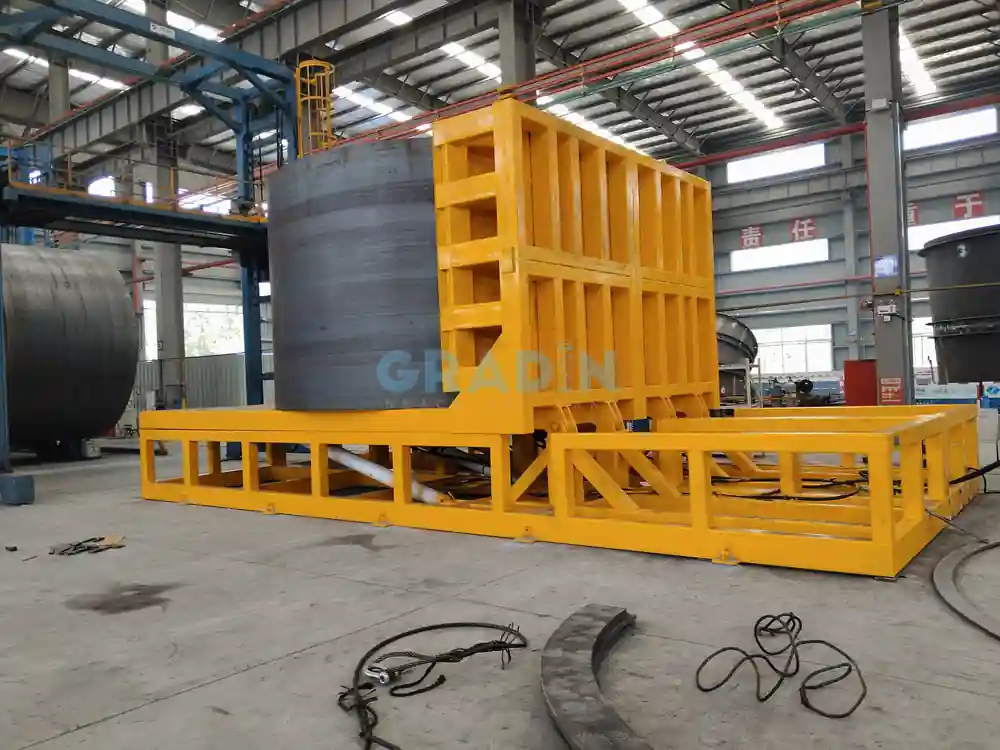

Platform shape: 3×4.8m + 4.8×7m arranged at 90°, forming an L‑shaped tilter. Workpiece rests on one wing, hydraulically rotated 90° to transfer to the other wing.

Advantage: V‑groove eliminates tooling changeover; L‑shape suits long workpieces.

2.3 Safety & process control

Approach:

• Adjustable tilt speed, max 10 minutes to avoid impact
• Voltage: 380V / 60Hz / 3P – custom motor for special frequency
• Color: yellow (high visibility, industrial safety)

Advantage: 60Hz motor ensures correct torque/speed; yellow improves site safety.

2.4 Robust materials

Component	Specification
Frame	J300×200×10 rectangular tube
Deck	4mm steel plate
Cylinder	φ150-105
Pump power	11 kW

If you want to customize your material handling equipment, please contact us →.
