Masă de ridicare hidraulică electrică ușoară

Compact design, portability, and straightforward operation

Compact design, portable build, and easy operation are hallmarks of small hydraulic lifts. Their space-saving footprint and lightweight, movable nature suit tight spaces. Simple controls enhance accessibility. Key benefits include improved ergonomics, boosted productivity, and cost-effectiveness. Safety features like load-holding valves ensure reliability, making them a practical choice for workshops and garages.

Capacitate: ≤ 1 tonă
Distanța: ≤ 1 m
Lățime: ≤ 1 m
Lungime: 1 - 3 m
SOLICITAȚI O OFERTĂ

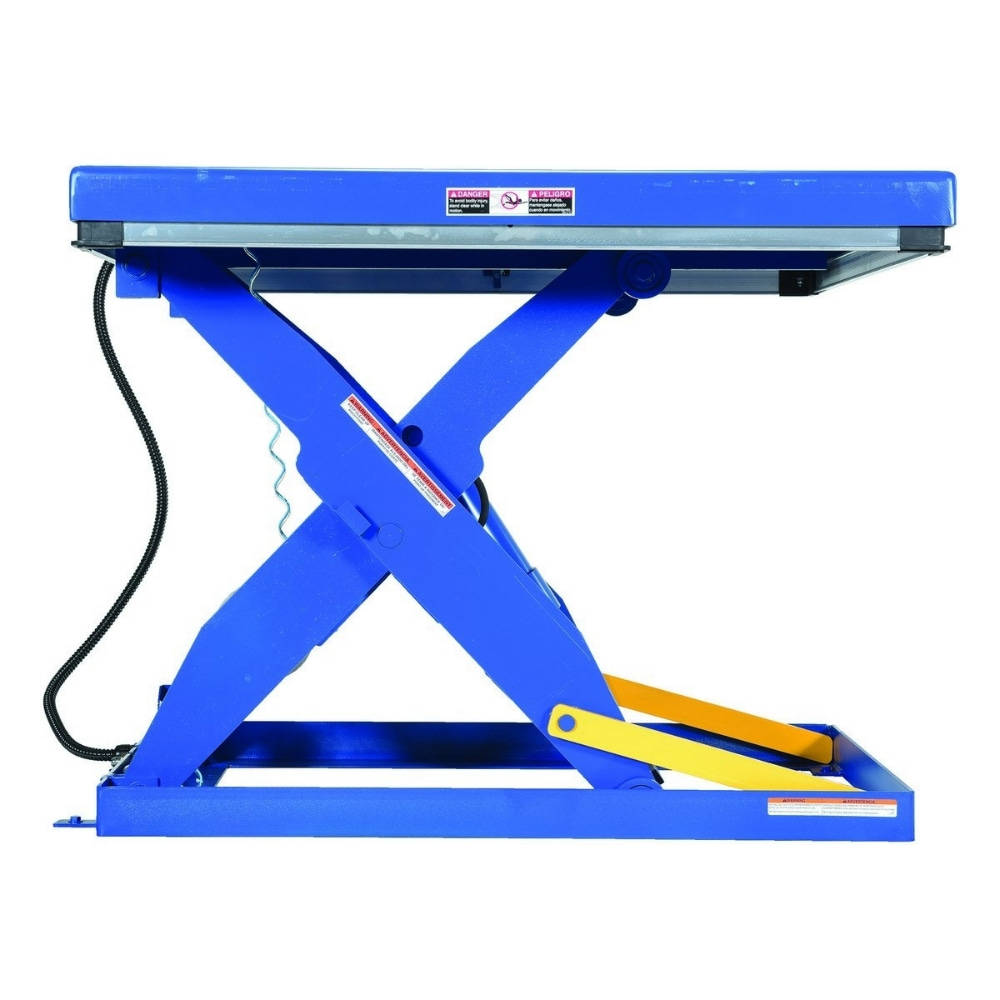

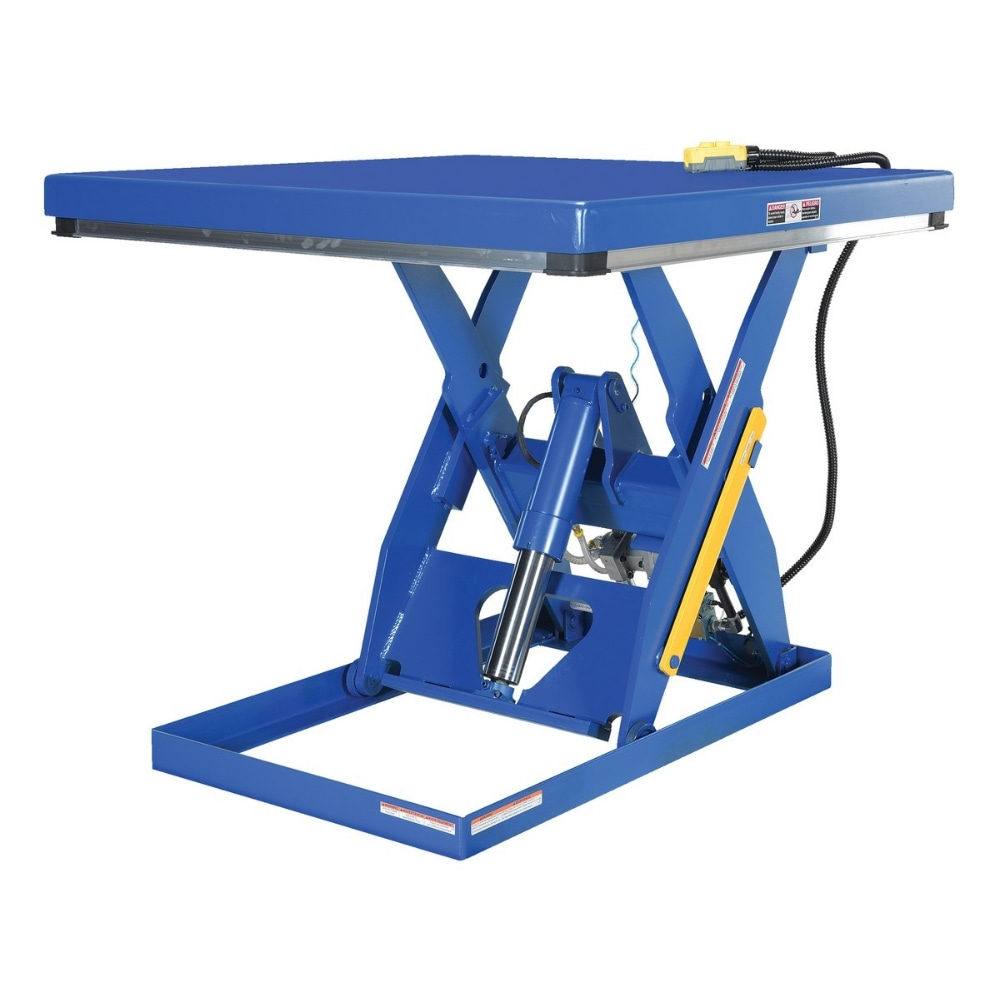

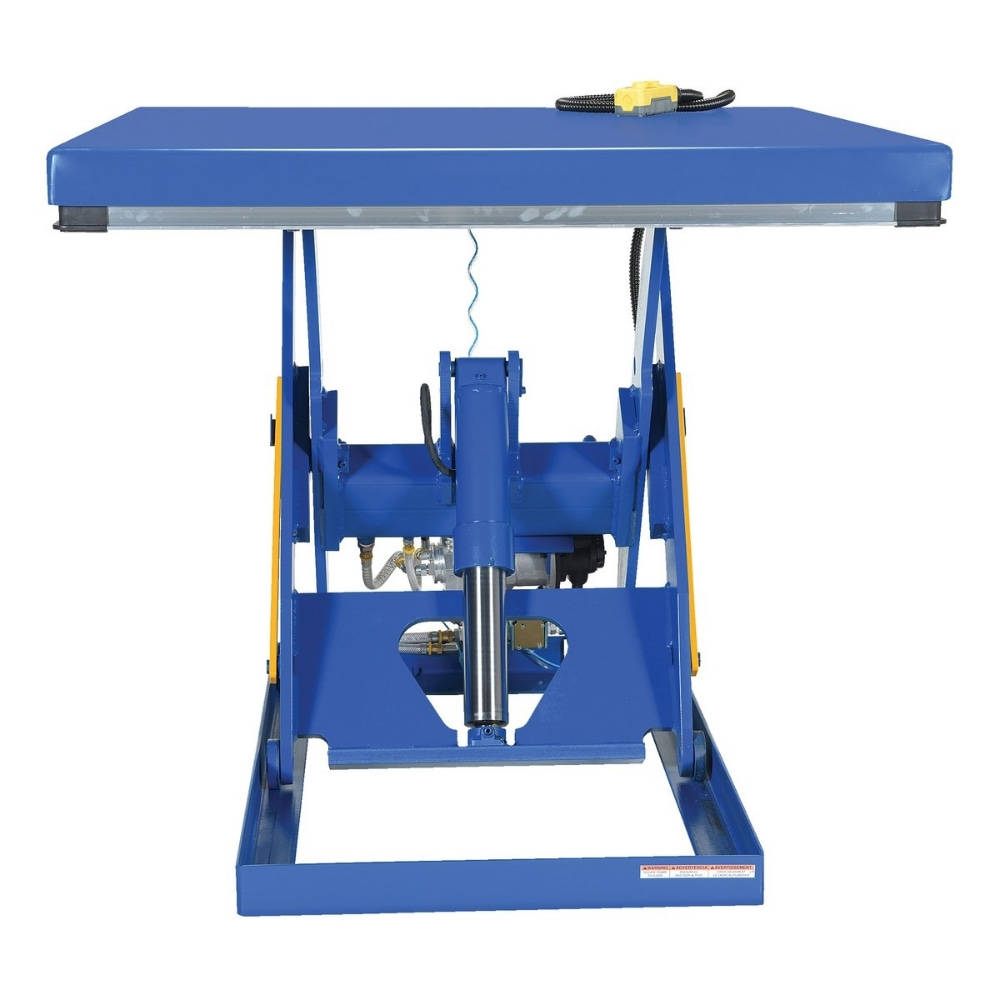

Small Self Propelled Electric Hydraulic Lift Table

Modele și specificații

Small electric lift table Models
ModelLoad capacityLowest height(mm)Max.height(mm)Table dimensions(mm)Packingd imensions(mm)Net weight(kg)
ETW40501500kg 1100lb60041401700*10001720*1020*700546
ETW40801800kg 1760lb70642101700*10001720*1020*806848
ETW410001000kg 2200lb90040002000*20002020*2020*10501390
ETW415001000kg 2200lb108050003000*20003020*2020*12302450
Industrii aplicabileHotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works, Energy & Mining, Food & Beverage Shops, Other, Advertising Company
Showroom LocationNone
Place of OriginShandong, China
Table Size2*2
Weight3000 kg
Machinery Test ReportProvided
Video outgoing-inspectionProvided
Marketing TypeNew Product 2019
Warranty of core components1 Year
Core ComponentsPressure vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC
ConditionNew
Brand NameGRADIN
Lift MechanismLift cu foarfecă
Lift Drive / ActuationHidraulice
Power3KW
Overall Dimensions3*3
ColorPersonalizat
MaterialHigh-duty Steel Structure
Lift DriveHydraulic Lifting Lift Platform
Load capacity≤ 1 tonă
Powerelectric
Max. Working Height22.5m
Lifting speed0.4m/s
Drive modeHydraulic Cylinder Drive
Platform sizePersonalizat
After-sales Service ProvidedVideo Technical Support
Small Self Propelled Electric Hydraulic Lift Table

Opțiuni personalizate

Personalizați-vă ascensoarele

De dimensiuni specifice, configurate, mobile, cu ciclu ridicat sau automatizate - atunci când aveți nevoie de un elevator care să îndeplinească o funcție specifică, avem materialele, componentele și tehnicile de proiectare pentru a produce o soluție de ridicare unică pentru aplicația dvs.

controale
Siguranță
Mobilitate
Configurații ale platformei
Platformă navetă
Înclinare
Întoarcere și rotire
Transportoare
Călătorie mare
Capacitate mare
Automatizare
Acționare
Deflecție de ridicare
Viteza
Indexare
Pini și dispozitive de blocare
Unități de putere
Măsurarea
Materiale și suprafețe
Porți și închideri
Small Self Propelled Electric Hydraulic Lift Table

Caracteristici și beneficii

Flexibility and Ease of Use

  • More models and standard options than any other competitive lift table allow for easy customization to meet your specific needs.
  • Standard controls are prewired and the internal power unit is onboard. Installation simply includes lagging the lift to the ground and connecting electricity.
  • Exceptionally low height allows on and off-load flexibility.
  • Single-piece, steel-reinforced legs and a 1/4- to 3/8-inch-thick steel platform make for extremely solid construction and easy adaptability.

Durability and Quality

  • Joints, the most critical wear points in the lift, feature chrome-plated, 100,000 psi, ultimate-strength pins for premium load strength and long life.
  • Solid steel leg and added stiffeners provide optimal overall stability and straight, repeatable tracking of the rollers as the lift raises and lowers.
  • Minimum 1/4-inch-thick steel-reinforced platform minimizes deck deflection, maximizes load stability, and greatly extends the life of the platform deck.

Maintenance and Warranty

  • On-board maintenance devices enable maintenance crews to safely and effectively block open the scissors during inspection and routine maintenance.
  • Sturdy, semi-transparent polyurethane oil reservoir provides an easily visible method of checking fluid levels and eliminates oil contamination due to rust.
  • Double-wire braided Parker hydraulic hoses resist wear, abrasion, and leaks.
  • Easy replacement of high-strength steel rollers minimizes downtime.
  • Gradin offers an industry-best 2-year warranty on all parts as a promise that you’ve purchased the industry’s most reliable lift.

Siguranță

  • The flow control valve regulates the flow of fluid to control the speed of the lift as it is lowered.
  • Minimum 3:1 structural factor of safety makes these lifts the most structurally sound lift in the industry.
  • Compliance with recognized standards:
    • ANSI MH29.1 – Safety Requirements for Industrial Scissor Lifts
    • NFPA 70 – National Electric Code
    • ASTM – A36 – Structural Steel Standard
    • ANSI Z535 – Safety Labeling Requirements
    • AWS D.1 – Welding Standards
    • Applicable portions of OSHA 29CFR1910 – General Workplace Safety

Videoclipuri conexe

Studii de caz conexe

CAPACITATE DE RIDICARE

DISTANȚA DE CĂLĂTORIE

≤ 1 m
LĂȚIMEA PLATFORMEI

≤ 1 m
LUNGIMEA PLATFORMEI

1 - 3 m
