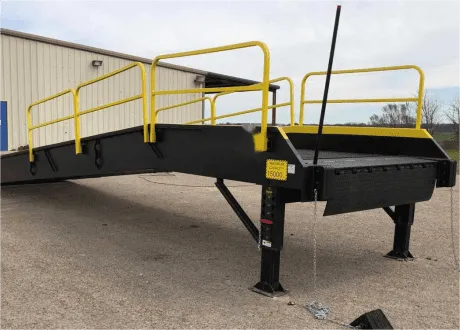

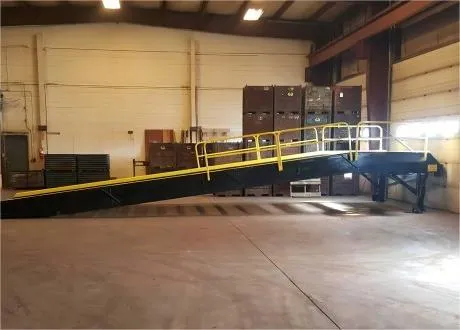

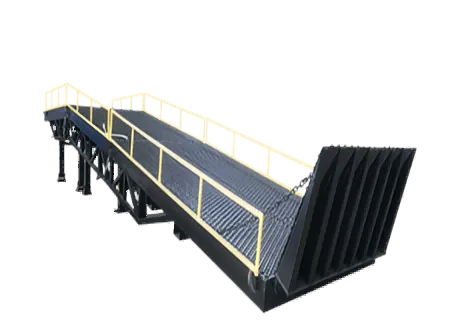

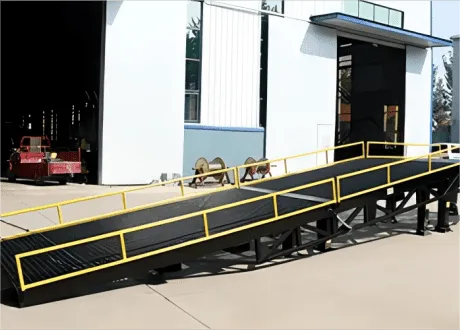

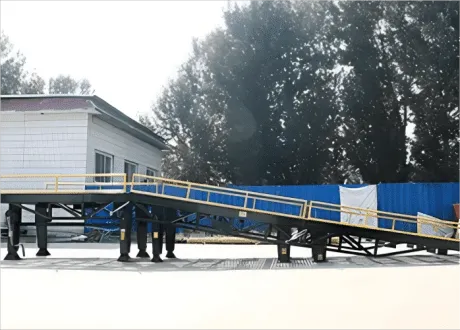

Sectional Loading Ramp
Multiple sections, modular design, easy assembly and disassembly
The Sectional Loading Ramp is a versatile solution for streamlining loading and unloading processes in warehouses and industrial facilities. Comprised of multiple sections, this ramp offers flexibility and adaptability to different loading dock configurations and truck heights. Its modular design allows for easy assembly and disassembly, making it convenient to transport and install as needed. Equipped with safety features such as non-slip surfaces and sturdy handrails, the Sectional Loading Ramp ensures the safety of workers during loading and unloading operations.
Models & Specs
| Model | Loading Capacity | Slope Length | Dimensions (L*W*H) | Self Weight | Power Mode |
| DCQY-6 | 6000KG | 6750mm | 11000*2000*1400MM | 2300KG | Manual/ hydraulic outrigger |
| DCQY-8 | 8000KG | 6750mm | 11000*2000*1400MM | 2480KG | |
| DCQY-10 | 10000KG | 6750mm | 11000*2000*1400MM | 2500KG |
Custom Options
Customize Your Lifts
Specifically sized, configured, mobile, high-cycle, or automated – when you need a lift to perform a specific function, we have the materials, components, and design techniques to produce a one-of-a-kind lifting solution for your application.
Features & Benefits
Rapid Loading and Unloading
Tailored for swift handling of goods, optimizing workflow efficiency.
Versatile Application
Suitable for both indoor and outdoor tasks, ensuring adaptability across various work environments.
Single-Person Operation
Easily operable by a single individual, minimizing labor costs and maximizing productivity.
Direct Container Access
Allows forklifts to directly access containers for efficient loading and unloading without container removal.
Extended Lifespan
Ensures a prolonged service life, delivering durability and reliability over time.
Sectional Structure
Modular design offers compact dimensions, facilitating effortless transportation and storage.
Ideal for
Forklifts, logistics terminals, factories, container terminals, and trucks, catering to diverse loading and unloading needs.
| LIFT CAPACITY | |
|---|---|
| PLATFORM WIDTH | 1 – 2 m |
| PLATFORM LENGTH | 9 – 11 m |
| TRAVEL DISTANCE | 1 – 3 m |
