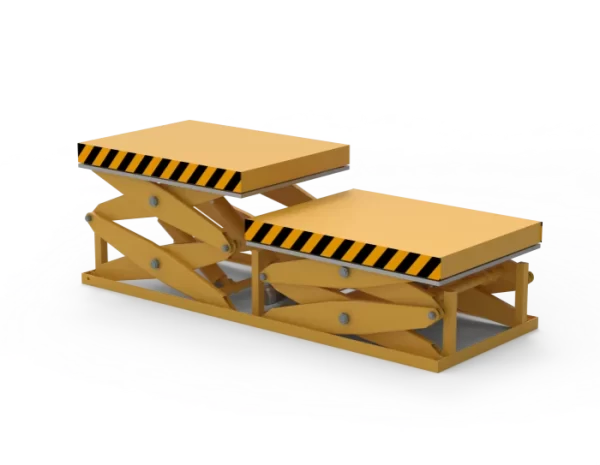

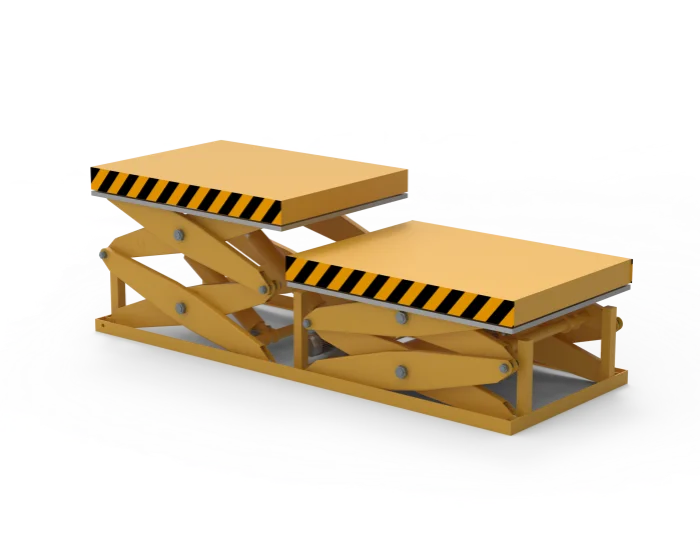

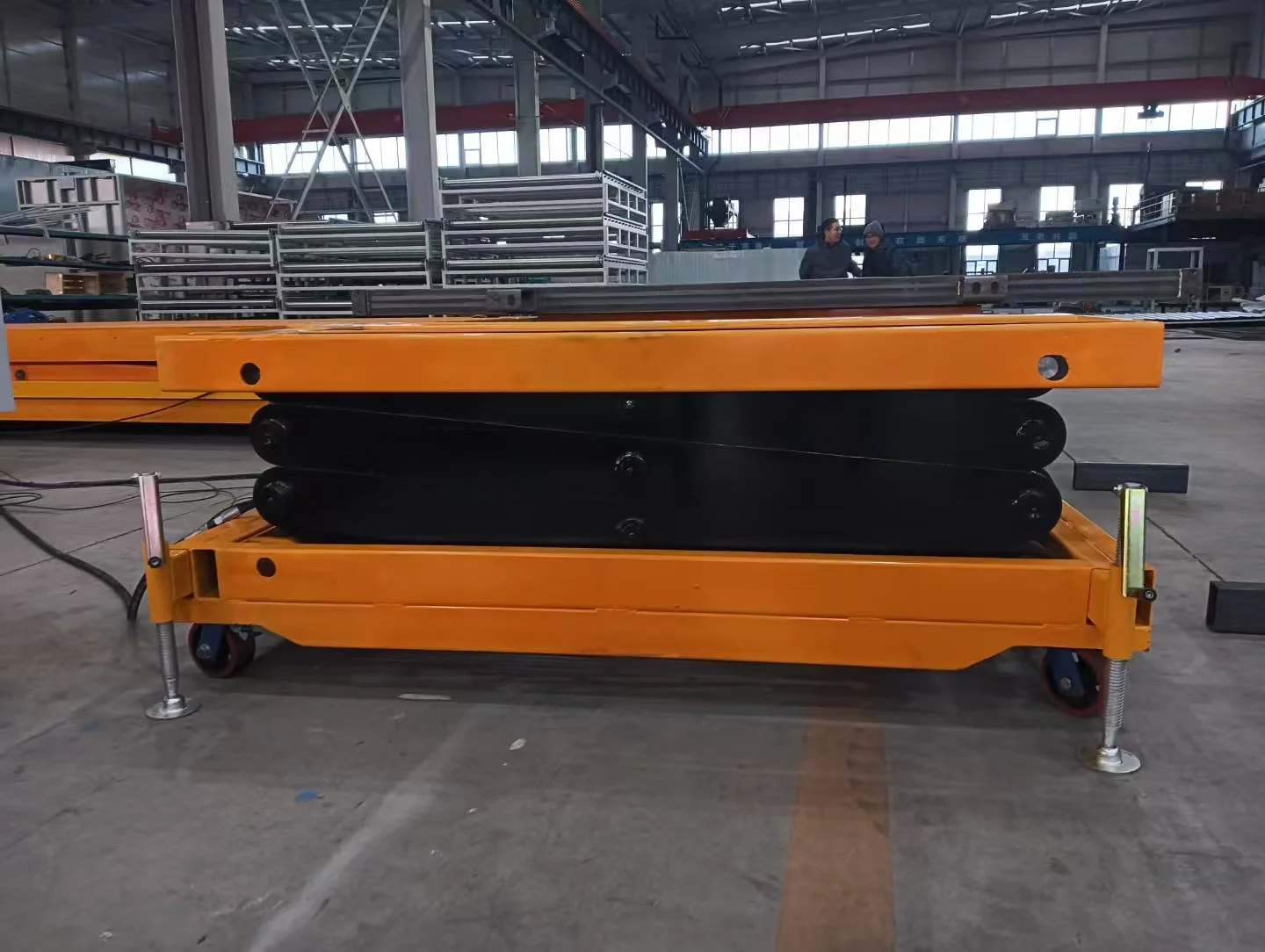

Linked Combination Scissor Lift

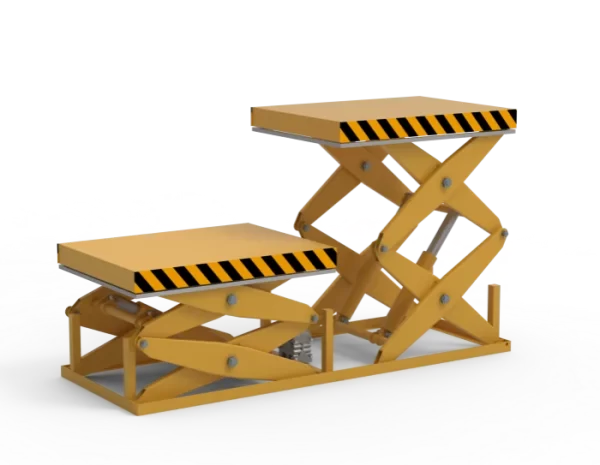

The two scissor lifts can achieve synchronous or asynchronous lifting

Connecting two scissor lifts horizontally for synchronous or asynchronous lifting provides flexibility to adapt to different tasks. It boosts efficiency by allowing simultaneous lifting of larger loads and ensures stability with even load distribution. This setup accommodates complex handling needs, optimizes space by maximizing lifting range, and enhances overall practicality across various industries.

Capacity: 3 – 4 ton

Distance: 3 - 5 m

Width: ≤ 1 m

Length: 1 - 3 m

Models & Specs
Custom Options
Case Studies & Videos
Product Documents

Linked Combination Scissor Lift

Models & Specs

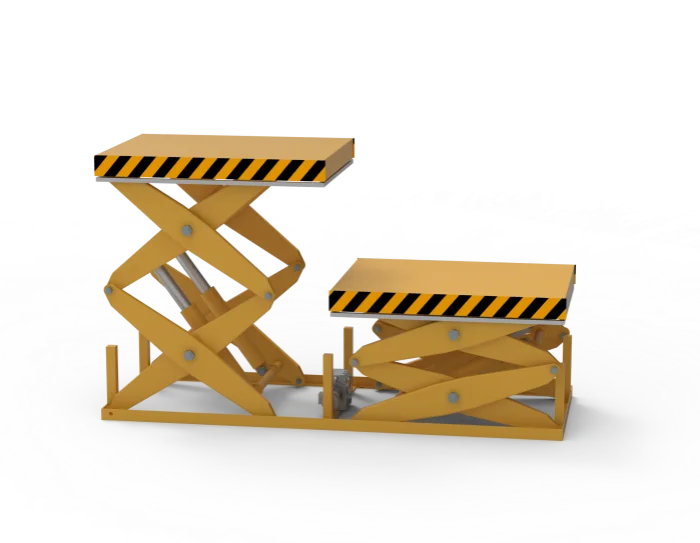

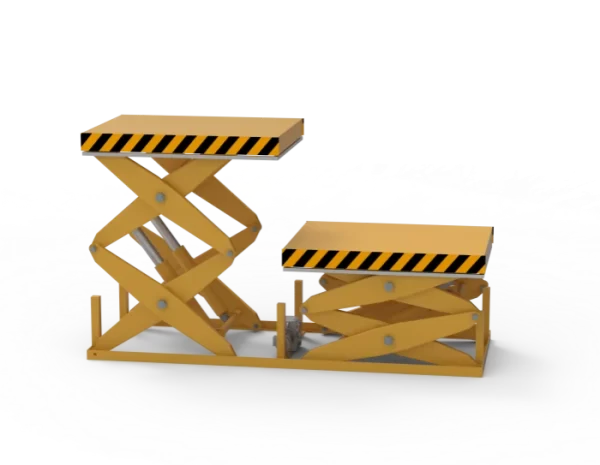

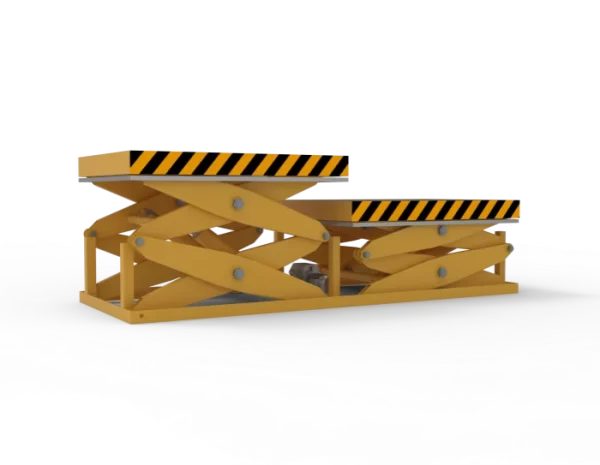

Model	SJG3.0-4.0
Platform dimensions	2000 * 750 mm
Required space dimensions	2100 * 850 mm
Stroke height	4000 mm
Rated load	3000 kg
Equipment height	800 mm (including wheel height)
Lifting speed	2-3 m/min
Machine finish	Yellow + black
Structural type	Two scissor lifts + synchronous motor + hydraulic pump station + control system
Scissor structure	Single span three layers

Case Study

Synchronized Elevation Solutions: Enhancing Efficiency for Mechanical and Electrical Operations

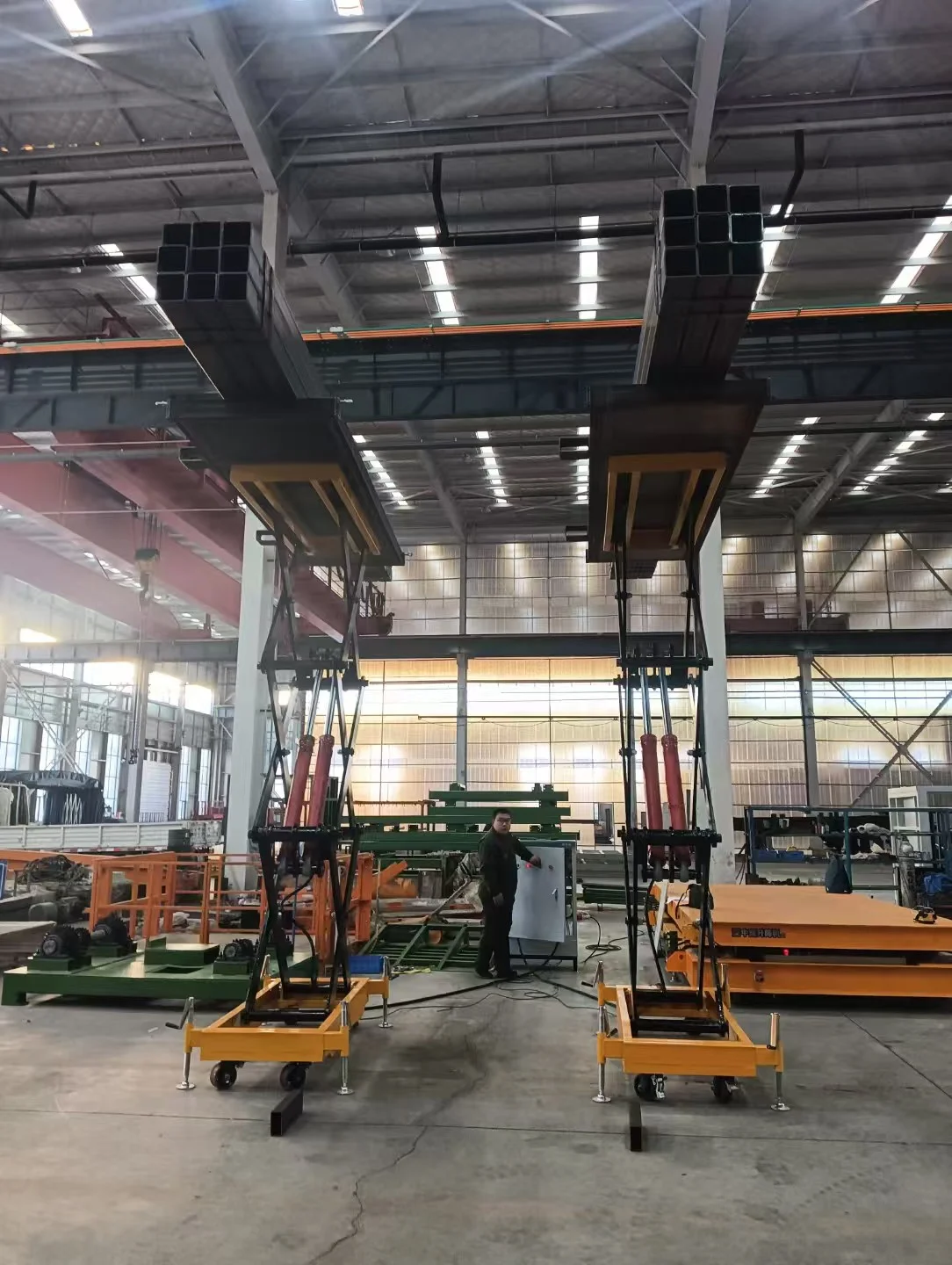

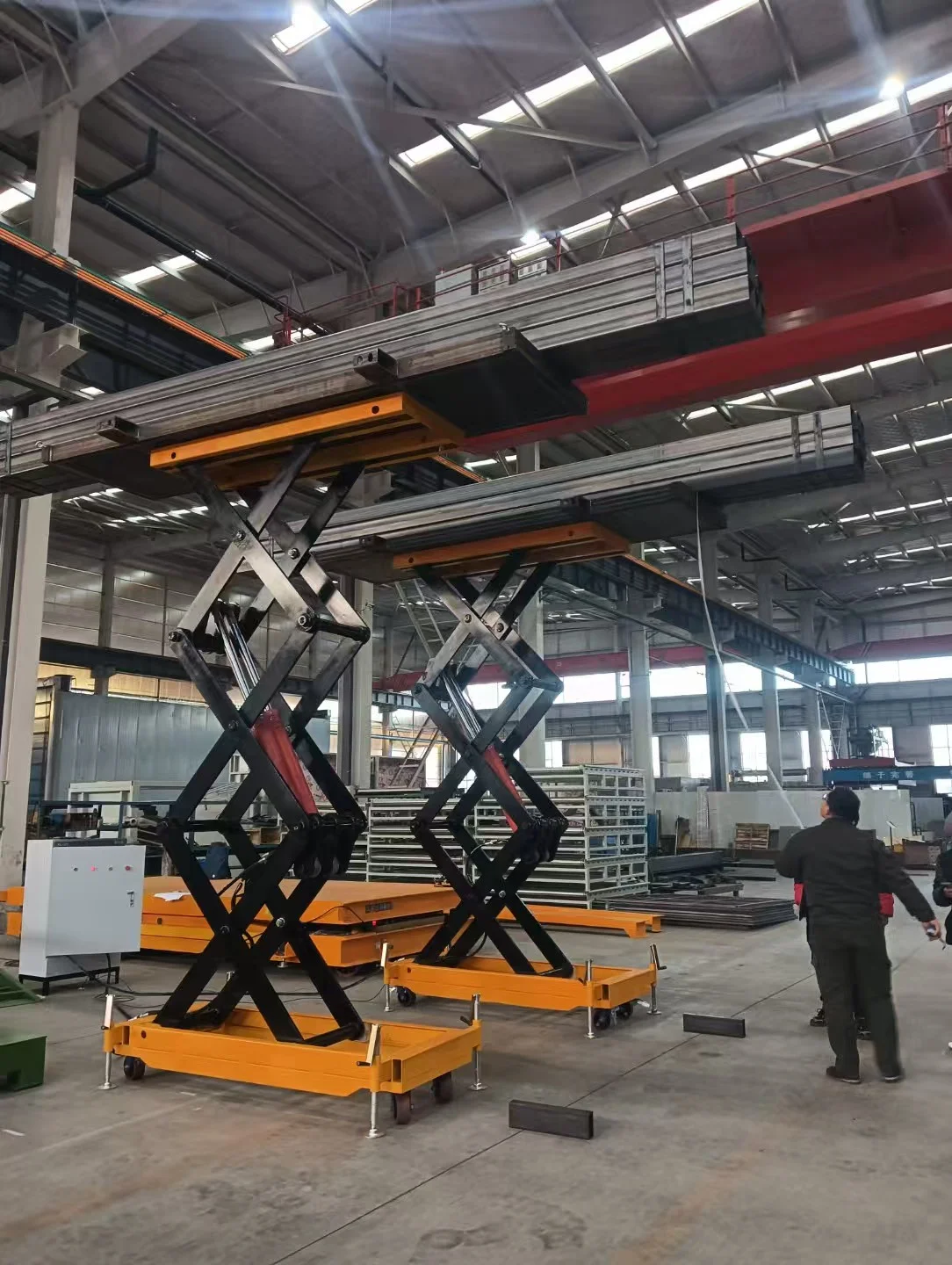

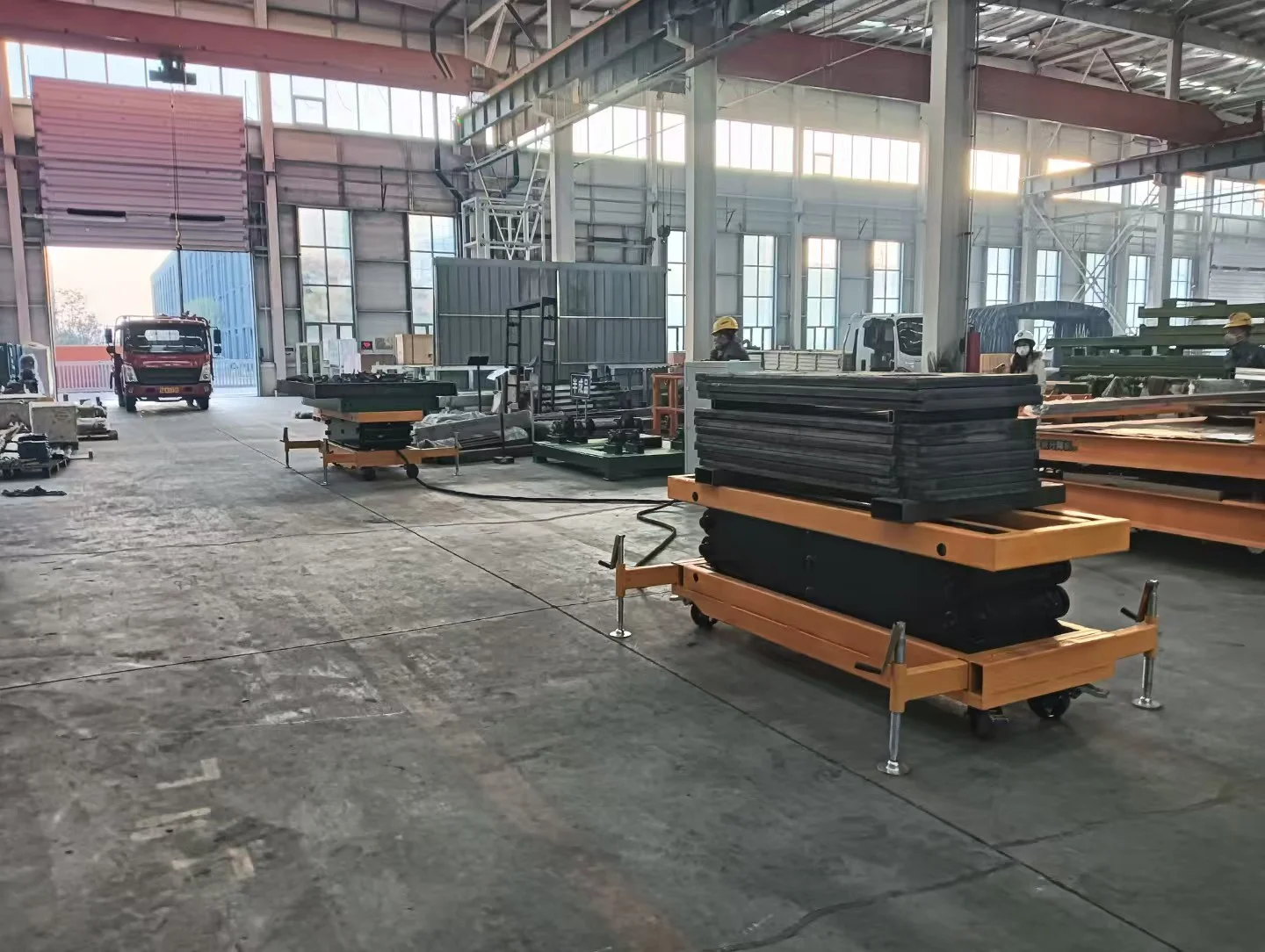

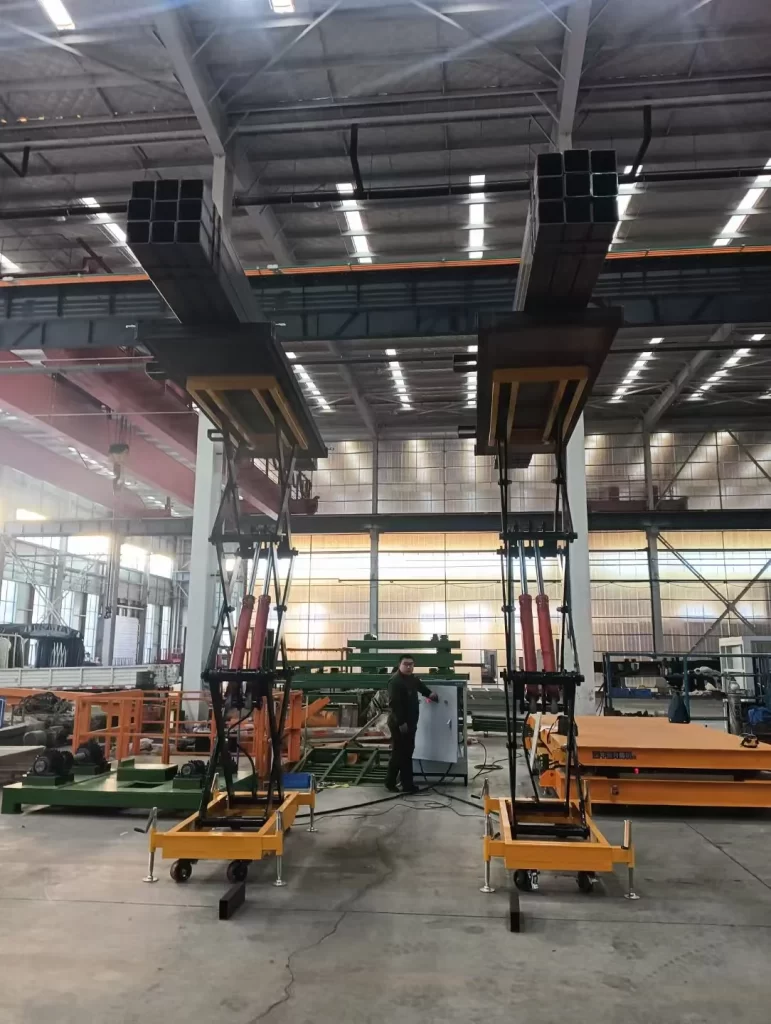

The client is a Singapore one-stop solution provider for mechanical and electrical products and has ordered this equipment, which features a control system, a hydraulic pump station, and a structure with two fixed scissor lifts to achieve synchronized platform elevation. The main goal is to address the client’s need for synchronously lifting equipment to raise materials to a certain height for operations. This design reduces manual effort, shortens project duration, and improves efficiency.

Equipment Overview

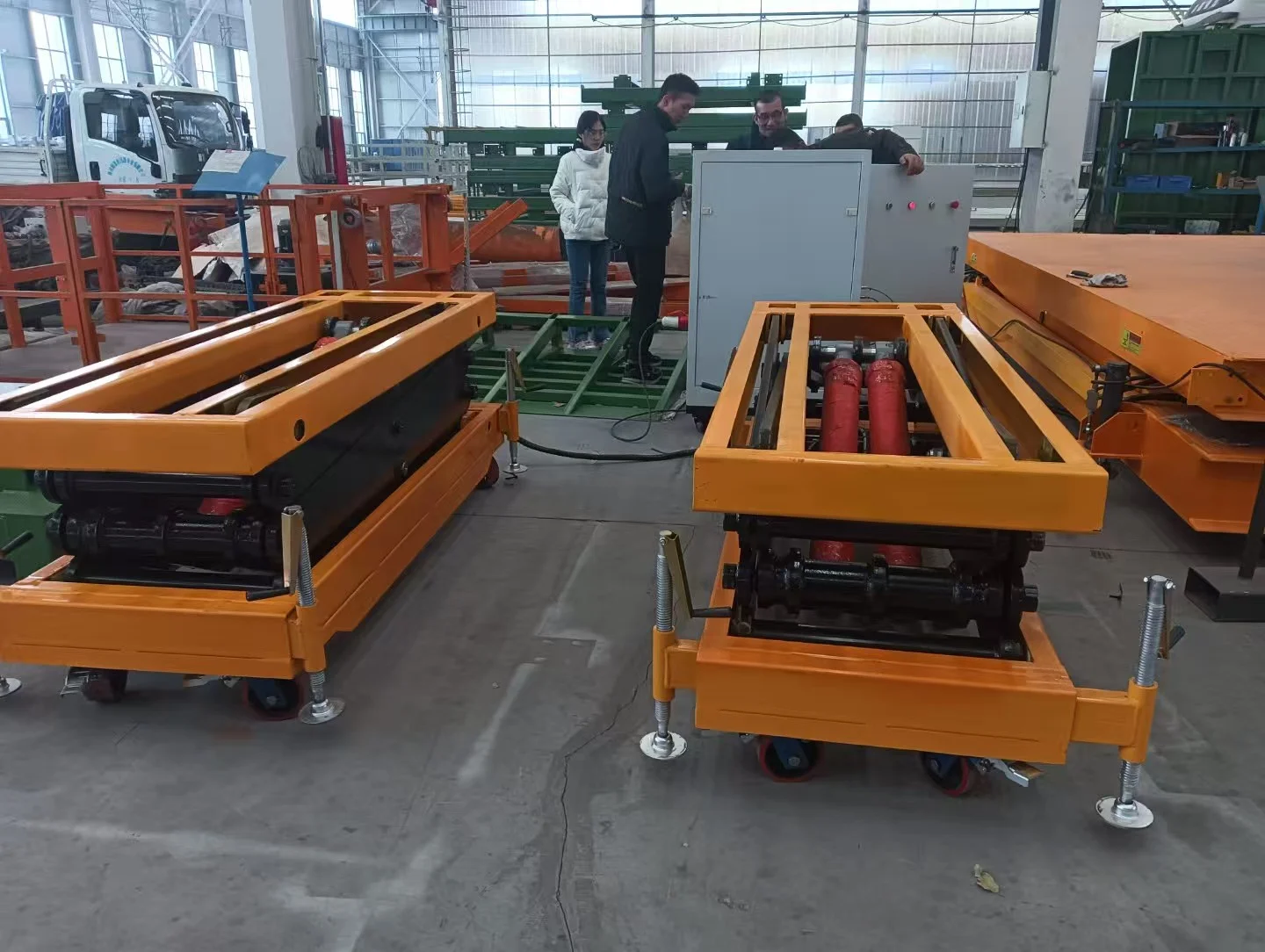

This equipment is designed with a control system, a hydraulic pump station, and two hydraulic structures to achieve synchronized platform elevation.

1. Lifting System

The lifting system mainly consists of scissor frames, lifting cylinders, and various bearings. The system operates through the extension and retraction of the lifting cylinders, driving the entire scissor frame for upward and downward movement.

2. Hydraulic System

The hydraulic system is composed of the following key components:

Motor: Provides the necessary power.
One-Way Valve: Ensures fluid flows in one direction.
Lifting Cylinder: Facilitates the lifting motion.
One-Way Throttle Valve: Controls the speed of the lifting action.
Hydraulic Oil Tank: Stores hydraulic fluid.
Hydraulic Piping: Connects all components for fluid transfer.

Linked Combination Scissor Lift

Custom Options

Customize Your Lifts

Specifically sized, configured, mobile, high-cycle, or automated – when you need a lift to perform a specific function, we have the materials, components, and design techniques to produce a one-of-a-kind lifting solution for your application.
