G-RZ22 Diesel Articulating Boom Lift

The 22-meter diesel articulating boom lift is designed for optimal performance and versatility, offering a maximum working height of 22 meters. Powered by a reliable diesel engine, it provides exceptional reach and flexibility, allowing operators to easily navigate around obstacles and access difficult-to-reach areas. Built for durability, the lift features rugged tires and advanced controls, making it well-suited for outdoor and demanding environments. Ideal for construction, maintenance, and industrial applications, this lift combines power, stability, and precision to tackle the toughest jobs.

Description
Case Studies

G-RZ22 Diesel Articulating Boom Lift

Models & Specs

Specifications
Max. Working height	22m
Max. Platform height	20m
Max. up and over clearance	12m
Horizontal outreach	11.6m

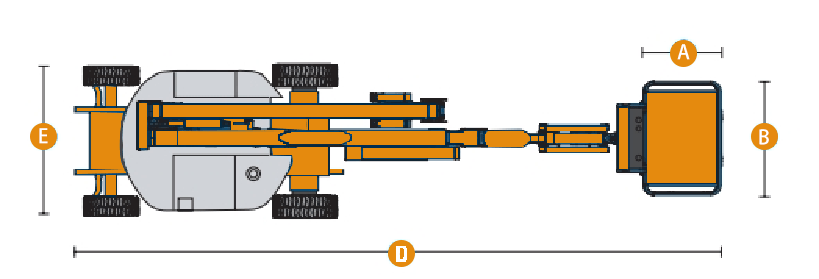

Ⓐ Platform width	0.76m
Ⓑ Platform length	1.83m
Ⓒ Height – stowed	2.55m
Ⓓ Length – stowed	8.54m
Ⓔ Width	2.38m
Ⓕ Wheelbase	2.4m
Ground clearance – center	0.4m

Productivity
Max. Lift capacity	230kg
Number of platform occupants	2
Platform rotation	180°
Turntable rotation	360° continuous
Drive speed – raised	1.1km/h
Drive speed – stowed	(2WD)6.3km/h /(4WD)4.2km/h
Gradeability – stowed	(2WD)30% / (4WD)45%
Turning radius (inside)	2.66m
Turning radius (outside)	5.66m
Drive and steer	4×4×2
Weight	(2WD) 9380kg /(4WD) 9500kg

Power
Fuel tank capacity	100L
Control voltage	12V
Motor	Yanmar /Kubota
Rated engine power	36kw/2400rpm

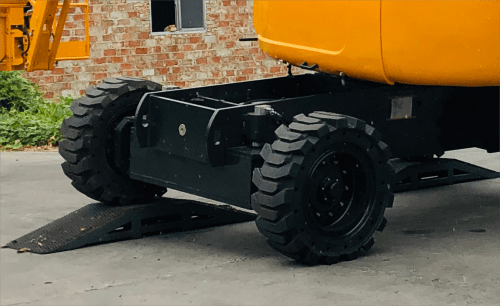

Features

Diesel engines offer robust performance, high fuel efficiency, and durability for long-duration heavy-duty work in challenging environments.

The use of PLC and CAN bus control simplifies wiring and facilitates maintenance, while metal aviation connectors with an IP65 protection rating ensure durability and resistance to dust and water.

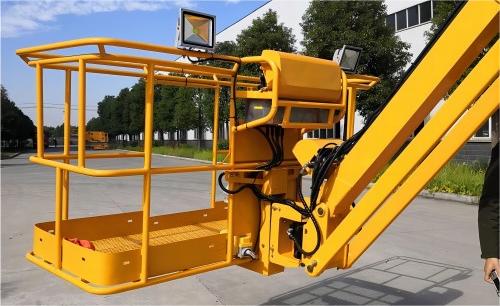

The platform’s automatic leveling function, ensuring the tilt angle relative to the horizontal plane is no greater than 1.5°, provides enhanced safety, stability, and precision during operation.

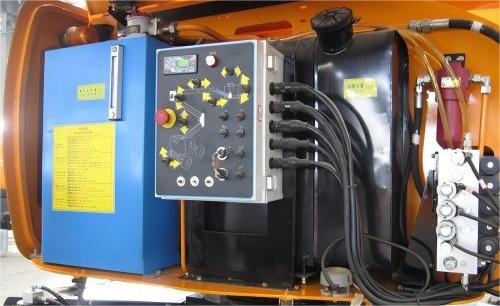

The platform control panel is the same as the ground control. User-friendly design with safety factors considered ensures a reliable work performance.

The boom features dust and sand protection at the boom head and cylinder piston rod, and it is equipped with marine-grade, high-strength engineering plastic drag chains, making it suitable for harsh working environments.
