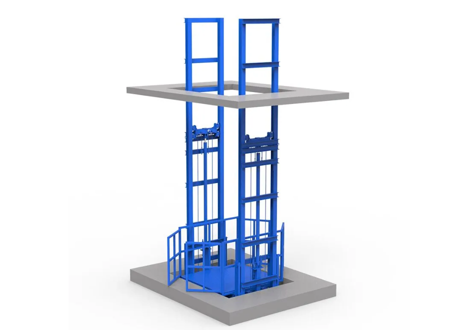

4 Posts Mezzanine Goods Lift

1-5 tons, up to 8m, Hydraulic, Leaf Chains, Anti-explosion

A mezzanine goods lift with a 4-post design is a type of lifting equipment used to transport goods between different levels of a building, especially to or from a mezzanine floor. It features four vertical posts for stability, smooth vertical movement, and efficient space utilization. Key features include high load capacity, safety mechanisms like gates and emergency stops, and compliance with relevant regulations. These lifts are commonly used in warehouses, distribution centers, and retail stores for efficient vertical transportation of goods.

Capacity: 4 – 5 ton

Distance: 7 - 9 m

Width: 2 – 3 m

Length: 1 - 3 m

Models and Specs
Custom Options
Features and Benefits
Case Studies and Videos
Product Documents

4 Posts Mezzanine Goods Lift

Models & Specs

Model	4 Post Lift\| Mezzanine Goods Lift
Lifting Capacity	1000-5000kg
Platform Size Min.	1500*1800mm
Platform Size Max.	2500*2800mm
Lifting Height	3.2m – 8m
Pit Depth	300mm
Application	Warehouses/Factories/Commercial Buildings

Installation Video

4 Posts Mezzanine Goods Lift

Custom Options

Customize Your Lifts

Specifically sized, configured, mobile, high-cycle, or automated – when you need a lift to perform a specific function, we have the materials, components, and design techniques to produce a one-of-a-kind lifting solution for your application.

4 Posts Mezzanine Goods Lift

Features & Benefits

Working Platform

Constructed with checkered steel plate for anti-skid properties, ensuring the safety of operators and goods during operation.

Guide Rails

Made from high-quality Q235 or Q345 H-shaped steel, meeting national standards for precise dimensions, strength, straightness, and minimal welding deformations.

Leaf Chains

Utilizes standard leaf chains 1234 or 1044, offering high strength, minimal stretch, extended service life, and reduced safety risks compared to other chains.

Safety Wire Rope

Equipped with 4 safety wire ropes (diameter 8mm~12mm) to secure the platform in case of chain failure, preventing sudden drops and ensuring operator safety.

Hydraulic Power Unit

Features a compact and lightweight design, yet provides high efficiency, working pressure, and reliability without leaks, ensuring smooth operation.

Hydraulic Cylinder

Designed for heavy-duty performance with smooth operation, capable of handling heavy workloads with durable components and leak-free operation.

Hydraulic Oil Pipe

Utilizes high-pressure pipes with double expanded metal protection, offering resistance to oil, water, and high pressure, along with wear resistance and tensile properties.

Electromagnetic Anti-explosion Valve

Incorporates a mechanical explosion-proof design with an explosion-proof valve in the hydraulic system, ensuring that even if the tube breaks due to external forces, the platform remains secure to prevent sudden drops, enhancing overall safety.
