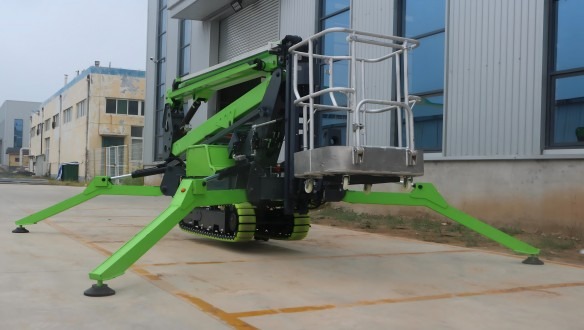

G-S14C 14m Crawler Spider Boom Lift
The 14m Crawler Spider Boom Lift offers a platform height of 13.7m and a working height of 15.7m, ideal for high-access tasks in narrow or complex environments. Equipped with a telescopic boom and jib arm, it ensures flexible and efficient operation. The ±80° rotatable high-strength aluminum platform is easy to detach, while the 360° turntable with worm gear reducer allows smooth, precise rotation. Its ultra-narrow chassis, high-durability crawler tracks, and CAN bus control system ensure excellent terrain adaptability, smart diagnostics, and reliable performance for construction, maintenance, and industrial use.
Modellen en specificaties
| Specificaties | |
| Max. Working height | 15.7m |
| Max. Platform height | 13.7m |
| Max. Working radius | 7.6m |
| Platform Dimensions | 1.1*0.7*1.1m |
| Ⓐ Length- stowed | 4.8m |
| Ⓑ Width-stowed | 0.85m |
| Ⓒ Height-stowed | 2.0m |
| Ⓓ Outrigger Footprint Length | 4m |
| Ⓔ Outrigger Footprint Width | 4m |
| Productivity | |
| Lift Capacity | 200kg |
| Platform Occupancy | 2 |
| Platform Rotation | ±80° |
| Jib Rotation | -90°-0 |
| Turntable Rotation | 360°non continuous |
| Drive Speed- stowed | 3 km/h |
| Gradeability | 25% |
| Max. Working Angle | 10° |
| Gewicht | 1900kg |
| Stroom | |
| LFP Battery | 48V/300Ah |
| Pump Motor | 4.5kw |
| Control Voltage | 12V |
| Driving motor | 2.5kw |
| Lader | 48V/35A |
| Hydraulic oil tank | 20L |
Kenmerken
CAN Bus Technology: Enables efficient data transmission for seamless operation.
Turntable Control Box: Displays real-time status and fault diagnostics.
Telescopic Boom + Jib Arm: Provides greater flexibility and extended reach.
±80° Rotating High-Strength Aluminum Platform: Easily detachable for improved adaptability.
360° Rotating Turntable: Equipped with a worm gear reducer for smooth and precise rotation.
High-Durability Tracks: Enhanced wear resistance for stable movement on various terrains.
One-Touch Outrigger Leveling (Optional): Simplifies setup for quick and efficient operation.
Ultra-Narrow Chassis: Excellent maneuverability in confined spaces, maximizing the working range.
Size Charts
