STANDAARD LIFTPRODUCTEN > LOADING DOCK RAMP

Heavy-Duty Laadperrons

Rapid Loading and Unloading: Tailored for swift handling of goods, optimizing workflow efficiency.
Versatile Application: Suitable for both indoor and outdoor tasks, ensuring adaptability across various work environments.
Single-Person Operation: Easily operable by a single individual, minimizing labor costs and maximizing productivity.

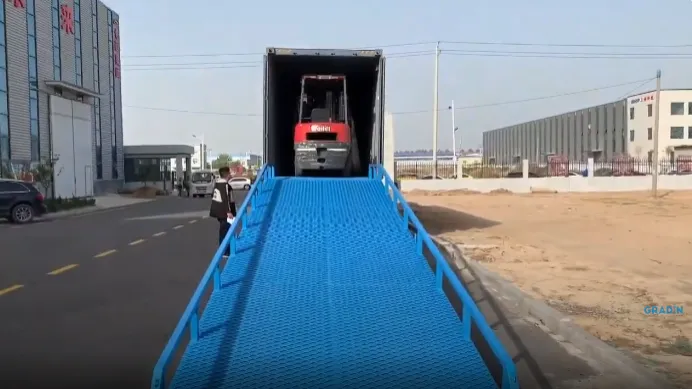

Direct Container Access: Allows forklifts to directly access containers for efficient loading and unloading without container removal.
Ideal for: Forklifts, logistics terminals, factories, container terminals, and trucks, catering to diverse loading and unloading needs.

Filter

OPLOSSINGEN PER TOEPASSING

WAT IS UW TOEPASSING?

Dankzij onze ontwerpbibliotheek en onze engineeringscapaciteiten kunnen we uw toepassingsuitdagingen aan. Wat uw uitdaging ook is, wij bouwen de perfecte lift die u nodig hebt.

Bekijk onze ontwerpopties

OPLOSSINGEN PER INDUSTRIE

WAT IS UW BRANCHE?

Wij begrijpen branchespecifieke uitdagingen beter dan wie dan ook. Van lucht- en ruimtevaart tot detailhandel, wij zijn bij uitstek gekwalificeerd om al uw uitdagingen te begrijpen.

Bekijk onze casestudies

Productcertificaten

CE
CERTIFICERING MILIEUMANAGEMENTSYSTEEM
GBT45001-2020 idt ISO45001
ISO9001
Certificering meetbeheersysteem
Productievergunning voor speciale apparatuur

Onze klanten

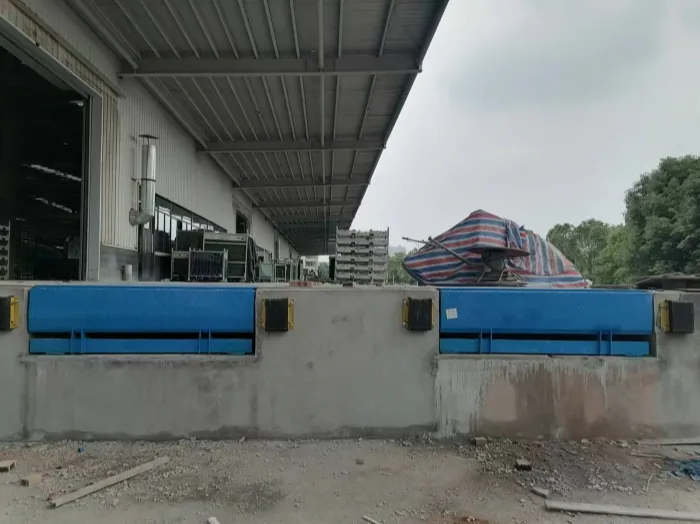

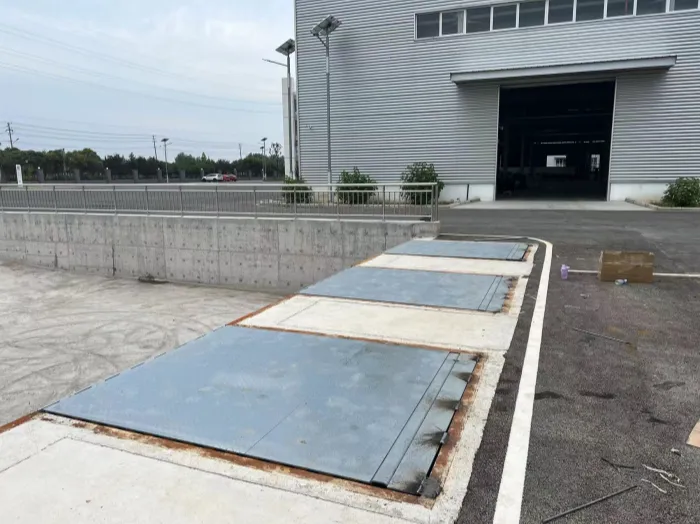

Stationair laadplatform

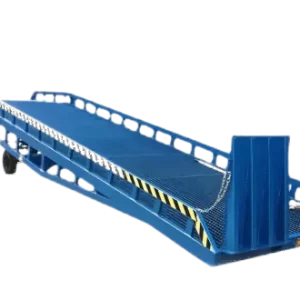

Mobiele laadklep

Features

  • Diamond anti-slip mesh
  • Electrical control
  • Outrigger
  • tire

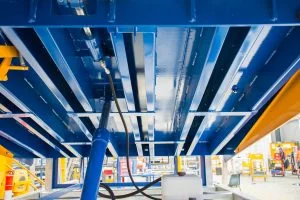

  • 8 U-shaped main beams for enhanced durability

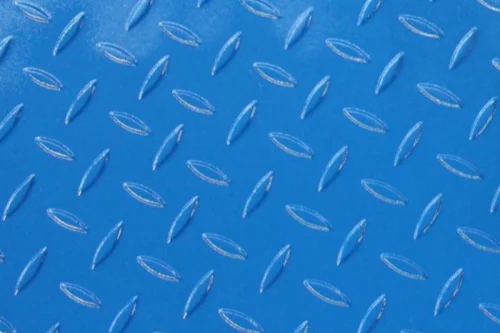

  • Integrated checkered steel plate for enhanced anti-slip functionality

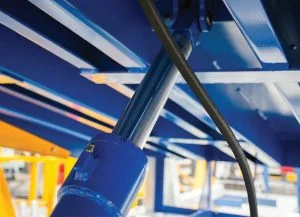

  • Inverted oil cylinder design to prevent oil passage blockage

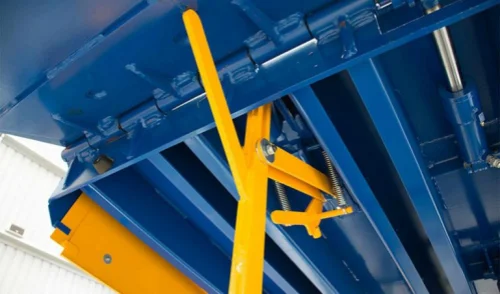

  • Maintenance Prop for enhanced safety

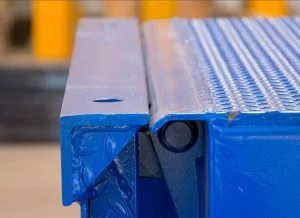

  • Rear Hinge provides a seamless and soft transition

Standard Dimensions

Stationary Type

Technical ParametersDCQG-6TDCQG-8TDCQG-10T
Workbench Size (NL x NW)2000 x 2000 mm2000 x 2500 mm2000 x 2000 mm
2000 x 2000 mm2000 x 2500 mm2000 x 2500 mm
Loading Capacity6000 kg8000 kg8000 kg
10000 kg10000 kg
Tilt Up (A)400 mm450 mm400 mm
450 mm450 mm
Tilt Down (B)300 mm300 mm300 mm
Dimensions (NL x NW x LH)2000 x 2000 x 600 mm2000 x 2500 x 600 mm2000 x 2000 x 600 mm
2000 x 2500 x 600 mm2000 x 2000 x 600 mm2000 x 2500 x 600 mm
Total Weight640 kg720 kg700 kg
800 kg710 kg830 kg
Stroom1.1 kW1.1 kW1.1 kW

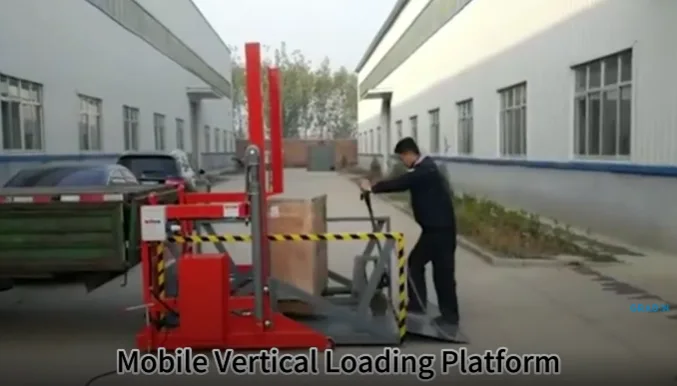

Mobile Type

Model NumberSJDY2-1.7-2SDY3-1.7-3SDY2-1.7-2SJDY3-1.7-3SJDY4-1.7-3
Table Size (mm)1600 × 20001600 × 26002000 × 20002000 × 20002000 × 2600
Countertop Pattern (mm)3 mm3.5 mm3 mm3.5 mm3.5 mm
Outer Frame120 × 60 + 100 × 50 rectangular tube120 × 60 rectangular tube120 × 60 + 100 × 50 rectangular tube120 × 60 rectangular tube120 × 60 rectangular tube
Tongue Plate, Tail Plate (mm)6 mm6 mm6 mm6 mm6 mm
Countertop Holder80 × 4080 × 4080 × 4080 × 4080 × 40
Oil Cylinder63 × 2 pieces63 × 2 pieces63 × 2 pieces63 × 2 pieces63 × 2 pieces
Pumping Station2.2 kW / 220 V / 50 Hz or 3.0 kW / 380 V / 50 Hz4.0 kW / 380 V / 50 Hz2.2 kW / 220 V / 50 Hz or 3.0 kW / 380 V / 50 Hz4.0 kW / 380 V / 50 Hz4.0 kW / 380 V / 50 Hz
Chain16A high strength chain1244 plate chain16A high strength chain1244 plate chain1244 plate chain
Thickness (C-type Steel)5 mm Q355b100 × 100 high strength H steel branch5 mm Q355b100 × 100 (high strength H steel four pieces)100 × 100 high strength H steel branch
Rise (mm)1700 mm1700 mm1700 mm1700 mm1700 mm
Weight (kg)706 kg1100 kg740 kg1060 kg1300 kg
Overall Dimensions (mm)2250 × 2260 × 25002360 × 2850 × 25502650 × 2260 × 25002760 × 2250 × 25002760 × 2850 × 2550

Verwante casestudies

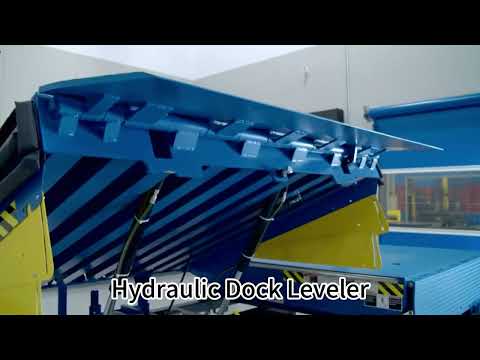

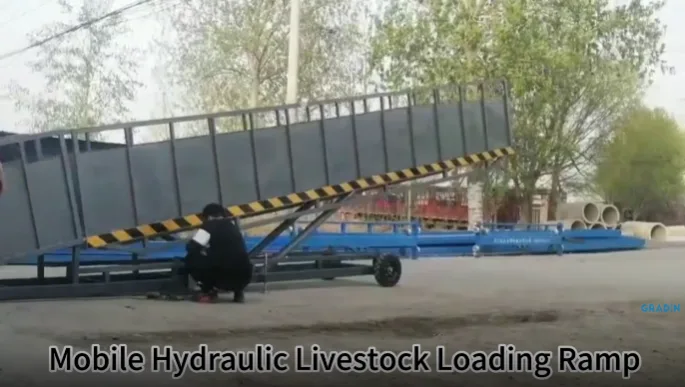

Gerelateerde video's
