P-18 Trailer Fold Arm Boom Lift

18m｜200kg｜Portable｜Adaptable｜Cost-effective

The trailer boom lift is a versatile high-altitude work equipment, widely used in construction, maintenance, and cleaning tasks. It offers a working height range from 10 meters to 22 meters, providing various operational options. Users can choose between electric, diesel, or hybrid models to meet different environmental and operational requirements.

The trailer design makes it easy to tow and transport, suitable for both urban and rugged terrains, offering a convenient and safe platform for high-altitude work.

Modelos y especificaciones

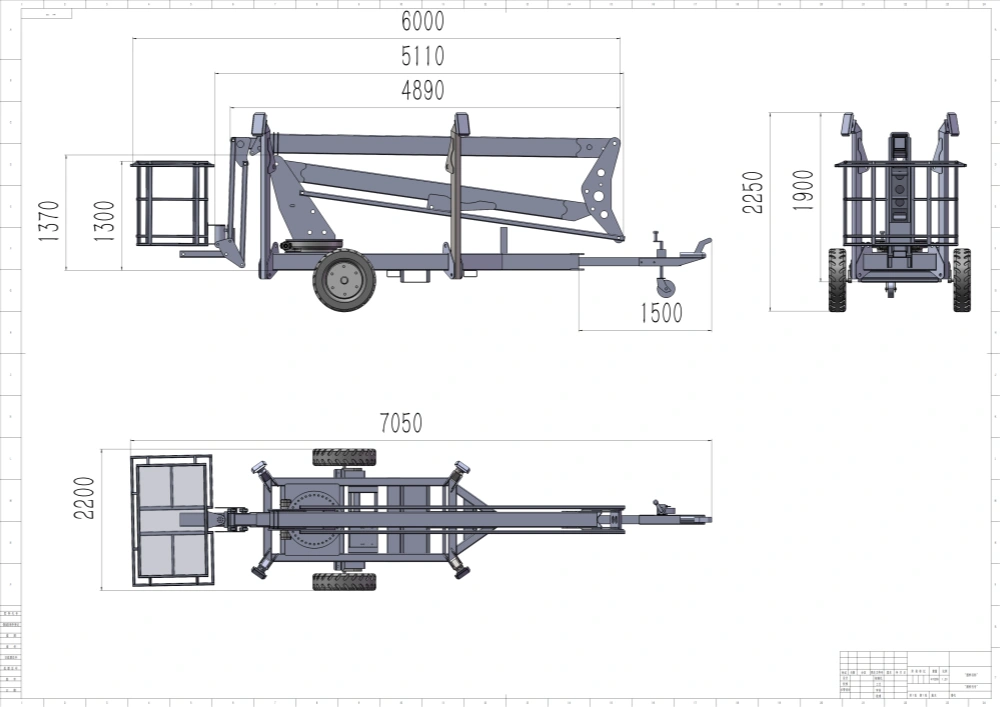

P-18 18m Trailer Fold Arm Boom Lift

Modelos y especificaciones

Número de modelo	P-18
Lifting Height (m)	18
Max Working Radius (m)	11
[A] Platform Length (m)	0.9
[B] Platform Width (m)	0.7
[C] Height – Stowed (m)	2.25
[D] Length – Stowed (m)	6
[E] Width – Stowed (m)	2.2
Rotation Angle	360° rotation
Overall Dimensions (After Folding) (m)	61.72.2
Rated Load Capacity (kg)	200
Peso total (kg)	3300
Lifting Method	Elevación hidráulica
Support Method	Soporte hidráulico para piernas
Color del dispositivo	En función de las necesidades del cliente

Número de modelo	P-10	P-12	P-14	P-16	P-18	P-20
Lifting Height (m)	10	12	14	16	18	20
Max Working Radius (m)	5.8	7.5	7.5	10.5	11	11
[A] Platform Length (m)	0.9
[B] Platform Width (m)	0.7
[C] Height – Stowed (m)	2.1			2.2	2.25	2.25
[D] Length – Stowed (m)	5.2	4.7	5.5	5.7	6	6.6
[E] Width – Stowed (m)	1.7	2.2	2.2	2.25	2.2	2.25
Rotation Angle	359°	360°
Tamaño de la plataforma (m)	0.90.71.1	–	–	–	–	–
Overall Dimensions (After Folding) (m)	5.21.72.1	4.71.72.2	5.551.72.2	5.71.72.25	61.72.2	6.61.82.25
Rated Load Capacity (kg)	300	200
Peso total (kg)	1950	1900	1900	2500	3300	4200
Lifting Method	Elevación hidráulica
Support Method	Soporte hidráulico para piernas
Color del dispositivo	En función de las necesidades del cliente
