Vertical Reciprocating Lifts (VRC’s)

Vertical Reciprocating Conveyors (VRCs), also known as vertical lifts, are efficient for transporting materials to mezzanine floors. Unlike elevators, VRCs are not subject to strict elevator codes and regulations, as they are designed solely for moving materials and equipment—not passengers. This distinction allows for lower manufacturing and installation costs.

VRCs enhance safety compared to forklifts and other lifting methods, improving overall facility safety. For our VRC projects, Panel Built collaborates with dealers nationwide to provide customers with top-quality VRCs.

Application

Material Handling

Perfect for transporting goods between different facility levels, our VRCs provide a reliable solution for moving heavy materials to mezzanines or upper floors.

Warehouse Operations

Our VRCs streamline the movement of pallets, boxes, and equipment within warehouses, optimizing space and increasing productivity.

Manufacturing Facilities

Ideal for transferring components and raw materials between production areas, our VRCs facilitate smooth workflows and help maintain operational efficiency.

Loading and Unloading

Designed to assist in loading and unloading trucks and containers, our VRCs reduce reliance on forklifts, enhancing safety and reducing operational costs.

Retail Environments

In multi-level retail spaces, our VRCs efficiently transport inventory from storage areas to sales floors, ensuring quick and organized restocking.

Food and Beverage Industry

Our VRCs are suitable for moving bulk materials and finished products in food processing and distribution centers, maintaining hygiene and safety standards.

Our Cases

Key components

Drive System

Electric Motor: Powers the lifting mechanism. Hydraulic System: Used in some models for smooth and efficient lifting

Lifting Platform

The surface on which materials are placed. Designed for stability and durability.

Guide Rails

Structures that keep the conveyor belt aligned and prevent materials from falling off.

Control Panel

User interface for operating the VRC, allowing for control of the lift’s movement (up, down, stop).

Safety Features

Overload Protection: Prevents lifting beyond the rated capacity.
Emergency Stop Button: Allows for immediate cessation of operation in case of emergencies.
Safety Locks: Engage when the platform is stationary to prevent accidental movement.

Support Structure

The framework that holds the entire system in place, ensuring stability and safety during operation.

Sensors

Detect the position of the platform and ensure safe operation by preventing collisions or over-travel.

Hydraulic Cylinders (if applicable)

Facilitate the lifting and lowering of the platform in hydraulic VRC models.

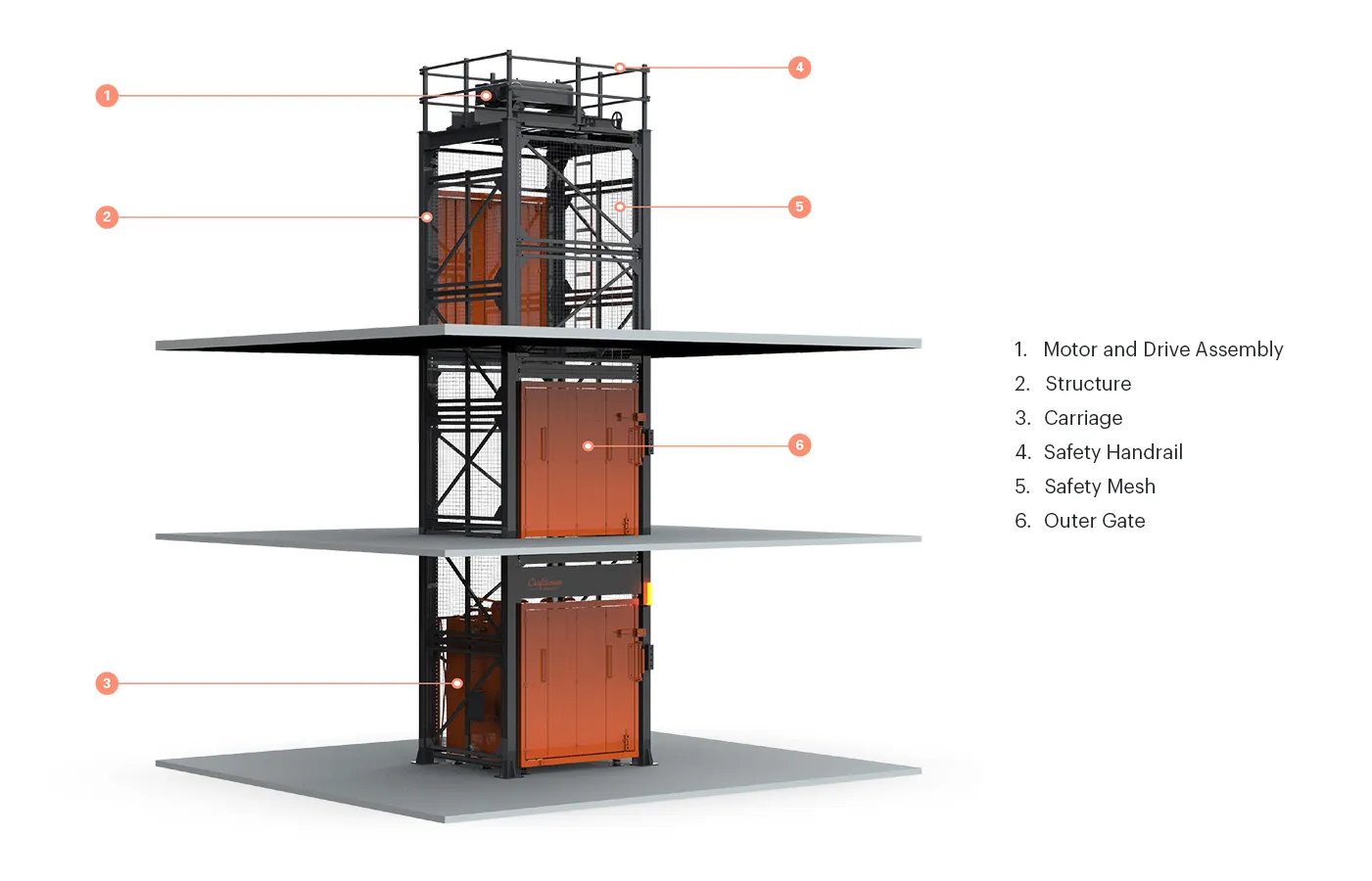

vrc-vertical-reciprocating-conveyor-features

Top Rated Products

Models & Specs

ModelE-shaped Vertical Reciprocating Conveyors Lift
Lifting Capacity500 lbs to 20,000 lbs (Customized)
Lift SpeedStandard travel speed is 20 fpm. Higher speeds available.
Load/Unload Patterns“E” pattern
Levels1 to 6 stops (Customized)
Power Supply230V/3P or 460V/3P
ApplicationMoving heavy boxes, cargo, and pallets from one level to another.

FAQ

A VRC is a mechanical device designed to transport materials vertically between different levels of a facility, such as from a ground floor to a mezzanine.

Unlike elevators, VRCs are specifically designed for moving materials and equipment, not passengers. They are not subject to the same strict elevator codes and regulations.

VRCs can typically handle loads ranging from a few hundred pounds to several thousand pounds, depending on the model and specifications.

Common safety features include overload protection, emergency stop buttons, safety locks, and sensors to prevent collisions and ensure safe operation.

Yes, VRCs can be customized in terms of size, load capacity, and additional features to meet the specific needs of different industries and applications.

Regular maintenance includes checking hydraulic fluid levels, inspecting moving parts, and ensuring all safety devices are functioning properly. It’s recommended to follow the manufacturer’s maintenance guidelines.

VRCs are ideal for warehouses, manufacturing facilities, distribution centers, retail environments, and any application where vertical transportation of materials is needed.

Installation typically involves securing the VRC to the floor and ceiling, connecting it to electrical power (if applicable), and ensuring all safety features are operational. Professional installation is recommended to ensure safety and compliance with regulations.
