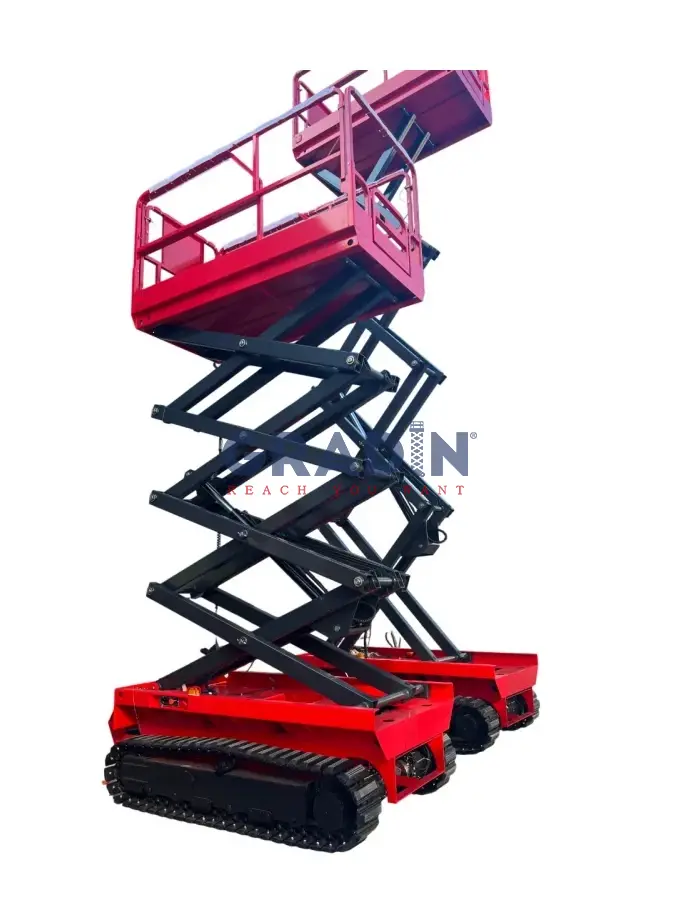

Tracked Self-Propelled Scissor Lift

The characteristics of these aerial lifting platforms include flexibility, convenience, and speed. They can effectively replace scaffolding to reach the necessary heights, efficiently solving your challenges. Moreover, they help save costs and valuable time. These platforms are especially suited for large-scale, continuous operations at airports, railway stations, docks, shopping malls, stadiums, residential properties, factories, and workshops.

EN280 standard and CE certified

Walking at Aerial Work

Safety Protection

Stepless Speed Control

Control System

Disk Brake System

Extension Platform

Overload Protection

Products

Without Outriggers：

CFPT0608LD Tracked Self-Propelled Scissor Lift

Maximum Platform Height：6 m
Maximum Working Height: 8 m
Load capacity 320 kg

CFPT0810LD Tracked Self-Propelled Scissor Lift

Maximum Platform Height：8 m
Maximum Working Height: 10 m
Load capacity 320 kg

CFPT1012LD Tracked Self-Propelled Scissor Lift

Maximum Platform Height：10 m
Maximum Working Height: 12 m
Load capacity 320 kg

CFPT1214LD Tracked Self-Propelled Scissor Lift

Maximum Platform Height：11.8 m
Maximum Working Height: 13.8 m
Load capacity 320 kg

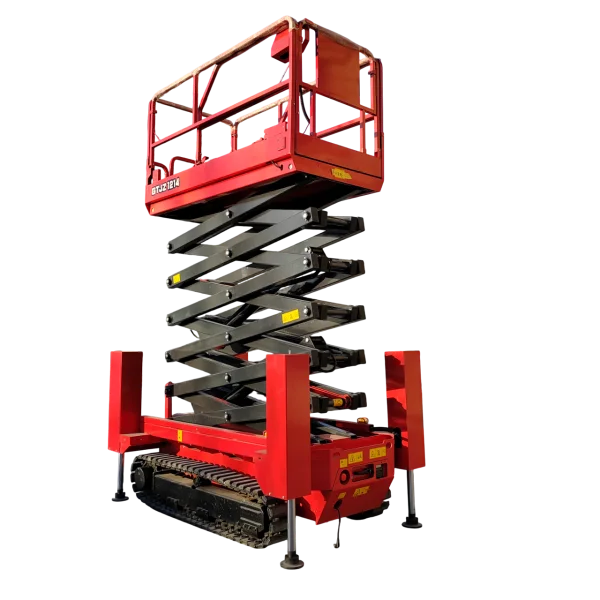

With Outriggers：

CFPT0608LDS 6m Tracked Scissor Lift

Maximum Platform Height：5.8 m
Maximum Working Height: 8 m
Load capacity 320 kg

CFPT0810LDS 8m Tracked Scissor Lift

Maximum Platform Height：7.8 m
Maximum Working Height: 10 m
Load capacity 320 kg

CFPT1214LDS 12m Tracked Scissor Lift

Maximum Platform Height：9.8 m
Maximum Working Height: 12 m
Load capacity 320 kg

Videos

Legless Tracked Self-Propelled Scissor Lift

Tracked Self-Propelled Scissor Lift with Legs

mini Tracked Self-Propelled Scissor Lift

Features

Specifications

Product Parameters	G-XJLD6	G-XJLD8	G-XJLD10	G-XJLD12
Safe Working Load	320 kg	320 kg	320 kg	320 kg
Extended Platform Safe Working Load	113 kg	113 kg	113 kg	113 kg
Maximum Number of Persons	3	3	3	3
Maximum Working Height	8 m	10 m	12 m	14 m
Maximum Platform Height	5.8 m	7.8 m	9.8 m	11.8 m
Overall Machine Length	2.4 m	2.4 m	2.4 m	3.02 m
Overall Machine Width	1.6 m	1.6 m	1.6 m	1.6 m
Overall Machine Height (Fence Not Folded)	2.33 m	2.47 m	2.58 m	2.65 m
Overall Machine Height (Fence Folded)	1.78 m	1.94 m	2.06 m	2.1 m
Working Platform Size (length x width)	2.27 m x 1.11 m	2.27 m x 1.11 m	2.27 m x 1.11 m	2.27 m x 1.11 m
Platform Extension Size	0.9 m	0.9 m	0.9 m	0.9 m
Minimum Ground Clearance (Retracted State)	0.1 m	0.1 m	0.1 m	0.1 m
Minimum Ground Clearance (Lifted State)	0.015 m	0.015 m	0.015 m	0.015 m
Wheelbase	1.87 m	1.87 m	1.87 m	1.87 m
Minimum Turning Radius (Inner Wheel)	0	0	0	0
Minimum Turning Radius (Outer Wheel)	2.40 m	2.40 m	2.40 m	2.40 m
Lifting Motor/Driving Motor	24V / 4.5 kW	24V / 4.5 kW	24V / 4.5 kW	24V / 4.5 kW
Machine Running Speed (Folded State)	3.5 km/h	3.5 km/h	3.5 km/h	3.5 km/h
Machine Running Speed (Lifting State)	0.8 km/h	0.8 km/h	0.8 km/h	0.8 km/h
Rising/Falling Speed	28/38 sec	28/38 sec	28/38 sec	28/38 sec
Storage Battery	8×6V / 200Ah	8×6V / 200Ah	8×6V / 200Ah	8×6V / 200Ah
Charger	48V / 35A	48V / 35A	48V / 35A	48V / 35A
Maximum Climbing Ability	25%	25%	25%	25%
Maximum Allowable Working Angle	X1.5° / Y3°	X1.5° / Y3°	X1.5° / Y3°	X1.5° / Y3°
Machine Weight	2550 kg	2700 kg	2982 kg	3500 kg
